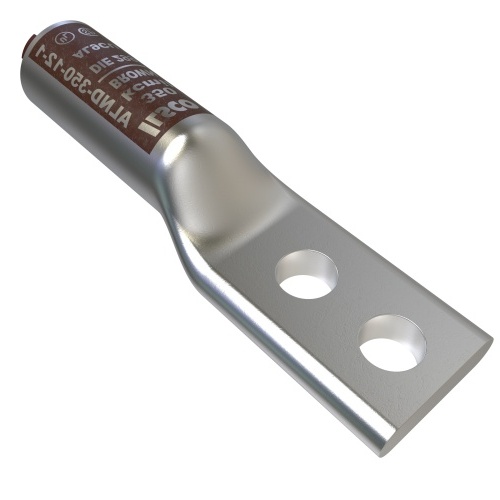

Ilsco ALND-350-12-1 Compression Lug - Aluminum, 350 MCM, Stranded, 35 kV
Normally In Stock
Code: 591084
Ilsco ALND-350-12-1 - Surecrimp Aluminum Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$63.77
Sale Price
$53.14
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-350-12-1 - Surecrimp Aluminum Compression Lug for 350kcmil conductors with 2 holes and 1/2in bolt size. Tin plated, UL/CSA/NEMA listed. Designed for 35kV applications with temperature rating of 90°C. Features DE-OX® technology, long barrel, and square tang end shape. Tang dimensions: 2.169in length, 1.516in width, 0.385in thickness. Installation via compression connection.
Specifications
Color
silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
350 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 kV
