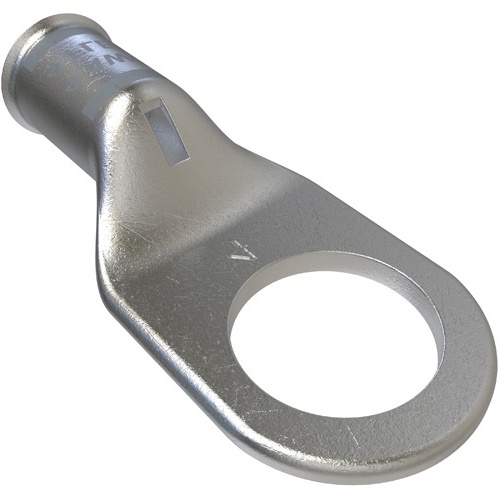

Ilsco CCL-4-12 Compression Lug - Copper, 4 AWG, Stranded, 35 kV
Normally In Stock
Code: 591131
Ilsco CCL-4-12 - Copper Compression Lug, Conductor Size 4, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$6.02
Sale Price
$5.02
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CCL-4-12 - Copper Compression Lug designed for 4 AWG conductors with 1/2in bolt size. Tin plated with UL and CSA certifications. Suitable for 35 kV voltage rating with a temperature rating of 90°C. Features a sight window, standard barrel, and gray color code. Dimension G of 0.395in and tang thickness of 0.08in.
Specifications
Color
silver
Component
Compression Lug
Manufacturer
Ilsco
Terminal for Wire Gauge
4 AWG
Terminal Stud Size Opening
1/2"
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 kV
(CL)
