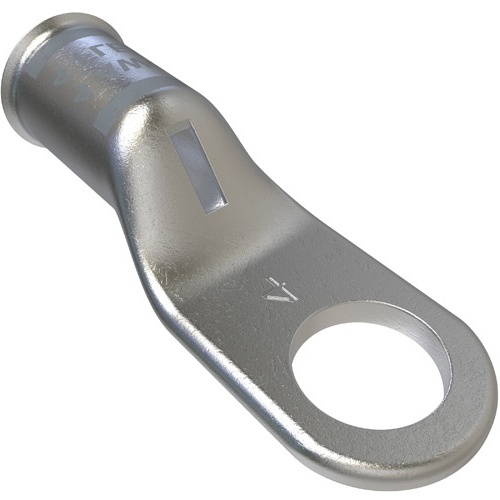

Ilsco CCL-4-516 Compression Lug - Copper, 4 AWG, Flex, 35 kV, 5/16", Silver
Normally In Stock
Code: 591132
Ilsco CCL-4-516 - Copper Compression Lug, Conductor Size 4, 1 Hole, 5/16in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$5.57
Sale Price
$4.64
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CCL-4-516 - Copper Compression Lug, Size 4, 1 Hole, 5/16in Bolt, Standard Barrel with Sight Window. Tin plated for durability. UL, CSA, NEMA Code S-588-3. Color: Silver. Material: Copper. Conductor Type: Flex. Voltage Rating: 35 kV. UL Control Number: 453G. Suitable for 4 Str CU Stranded conductors. Mounting Hole Diameter: 0.338in.
Specifications
Color
silver
Terminal Stud Size Opening
5/16"
Component
Compression Lug
Manufacturer
Ilsco
Terminal for Wire Gauge
4 AWG
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 kV
