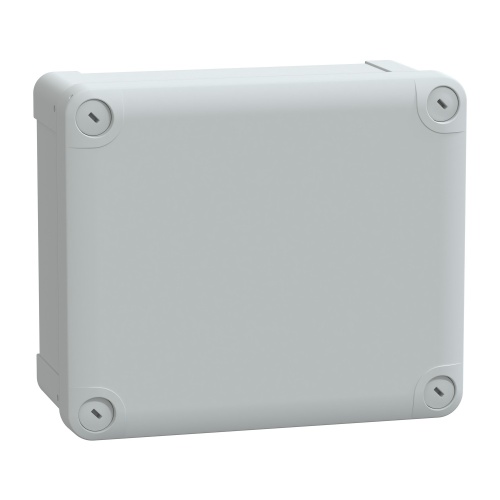

Schneider Electric NSYTBP19168 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 7.6" x 6.46" x 3.43" (HxWxD)
Normally In Stock
Code: 592121
Schneider Electric NSYTBP19168 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 7.6" x 6.46" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$43.38
Sale Price
$36.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBP is a gray wall-mounted enclosure designed for outdoor use. Constructed from polycarbonate, it features a low plain cover with captive screws for easy removal of the internal components. With a temperature range of -13 to 176 °F (-25 to 80 °C) and fire resistance up to 1760 °F (960 °C), it provides reliable protection for electrical equipment. The internal dimensions are 5.91 in (150 mm) in width, 6.89 in (175 mm) in height, and 3.15 in (80 mm) in depth.
Specifications
Enclosure Composition
Polycarbonate
Enclosure Height
7.6"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
6.46"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 175 x 150 x 80 mm

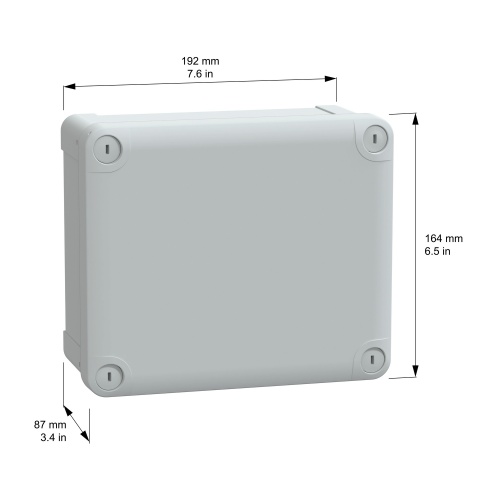

Ext is 193 x 164 x 87 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
