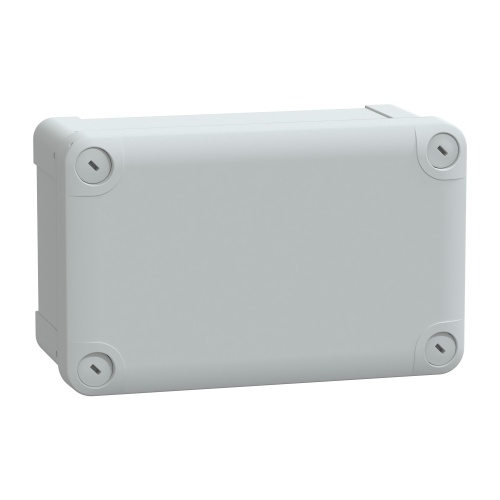

Schneider Electric NSYTBP19128 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 7.56" x 4.76" x 3.43" (HxWxD)
Normally In Stock
Code: 592125
Schneider Electric NSYTBP19128 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 7.56" x 4.76" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$38.99
Sale Price
$32.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP19128 Thalassa TBP enclosure is a durable wall-mounted solution for outdoor use. Made from polycarbonate with a gray color (RAL 7035), it features a captive screw flat lock and a low plain cover fixed with plastic screws. With an insulation class of Class II, this enclosure has an operating temperature range of -13 to 176 °F (-25 to 80 °C) and a fire resistance of 1760 °F (960 °C). It has internal dimensions of 4.13" (105 mm) width, 6.89" (175 mm) height, and 3.15" (80 mm) depth.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
7.56"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
4.76"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 175 x 105 x 80 mm

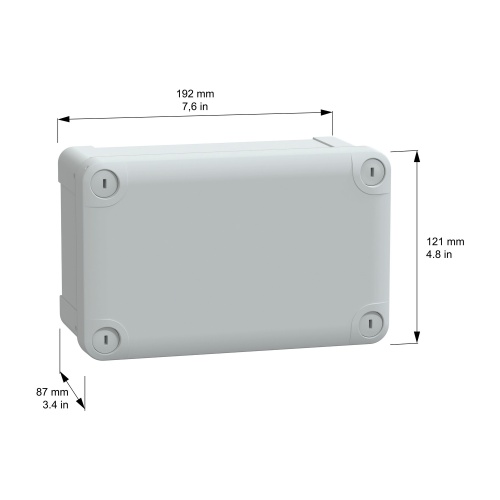

Ext is 192 x 121 x 87 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
