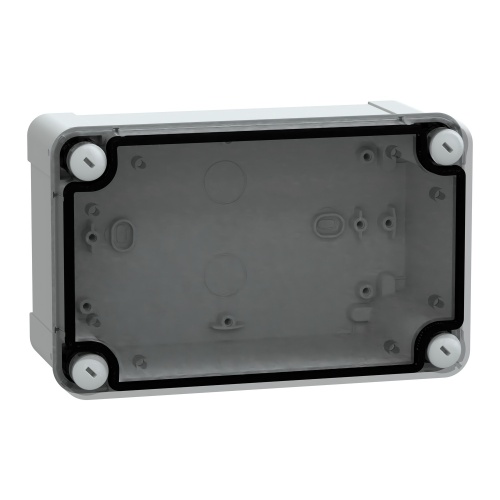

Schneider Electric NSYTBP19128T Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 7.56" x 4.76" x 3.43" (HxWxD)
Normally In Stock
Code: 592126
Schneider Electric NSYTBP19128T - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 7.56" x 4.76" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$60.06
Sale Price
$50.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP19128T from the Thalassa range is a wall-mounted enclosure made of polycarbonate. It has a captive screw flat lock outside the sealed area and a low transparent cover fixed with plastic screws. With an electrical insulation class of Class II, it is suitable for outdoor use (with a canopy or shelter and anticondensation valve). The Thalassa TBP has a gray (RAL 7035) transparent design and removable parts, making it practical and functional. Its dimensions are 4.13 in x 6.89 in x 3.15 in (internal width x internal height x internal depth), and it can withstand temperatures ranging from -13 to 176 °F (-25 to 80 °C). It has a fire resistance of up to 1760 °F (960 °C).
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
7.56"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
4.76"
Features
Thalassa TBP industrial PC box with transparent PC cover H20
Int is 175 x 105 x 80 mm

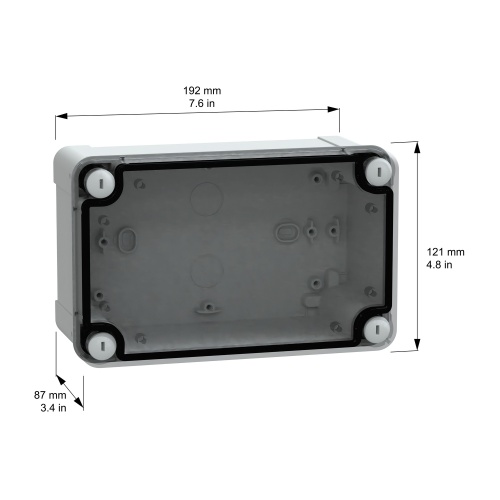

Ext is 192 x 121 x 87 mm
Wall mounted enclosure

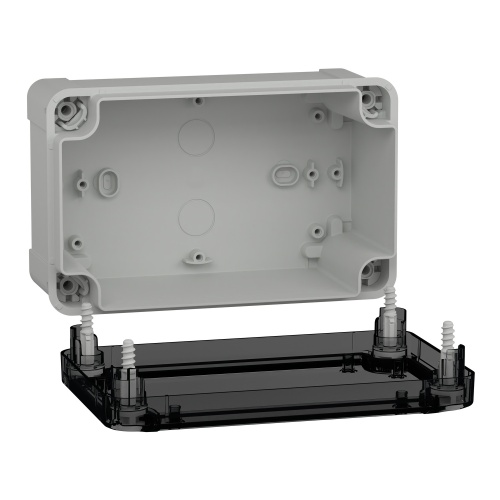

Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
