Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

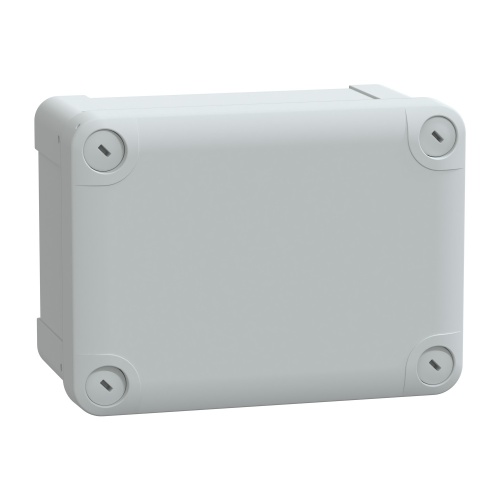

Schneider Electric NSYTBP16128 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 6.46" x 4.76" x 3.43" (HxWxD)
Normally In Stock
Code: 592130
Schneider Electric NSYTBP16128 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 6.46" x 4.76" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$34.92
Sale Price
$29.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBP enclosure (Original Schneider Electric NSYTBP16128) is a wall mounted solution designed for outdoor use (with canopy or shelter and anticondensation valve). Made of durable polycarbonate (Gray RAL 7035), it offers a secure storage space with a low plain cover, lockable by captive screw flat outside sealed area. With dimensions of 4.13" x 5.91" x 3.15" (105mm x 150mm x 80mm), it provides ample room for your electrical components, ensuring safety with an electrical insulation class of Class II. Its fire resistance of up to 1760°F (960°C) guarantees protection in the most extreme conditions, while the operating temperature range of -13°F to 176°F (-25°C to 80°C) allows for reliable operation in various climates. The removable cover, fastened by plastic screws, allows for easy access and maintenance.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
4.76"
Enclosure Height
6.46"
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 150 x 105 x 80 mm

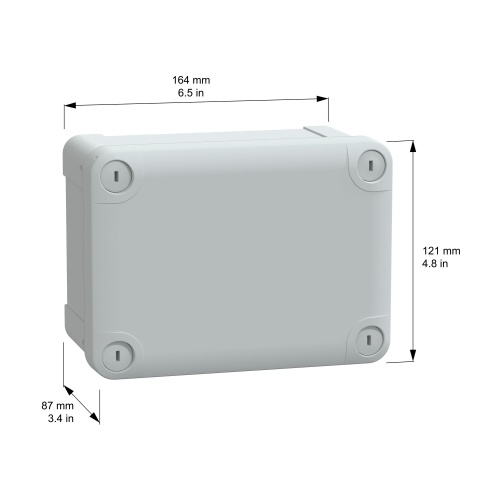

Ext is 164 x 121 x 87 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
