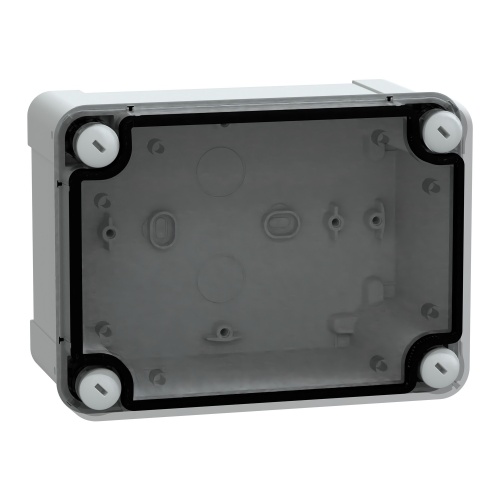

Schneider Electric NSYTBP16128T Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 6.46" x 4.76" x 3.43" (HxWxD)
Normally In Stock
Code: 592131
Schneider Electric NSYTBP16128T - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 6.46" x 4.76" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$35.80
Sale Price
$29.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
4.76"
Enclosure Height
6.46"
Features
Thalassa TBP industrial PC box with transparent PC cover H20
Int is 150 x 105 x 80 mm

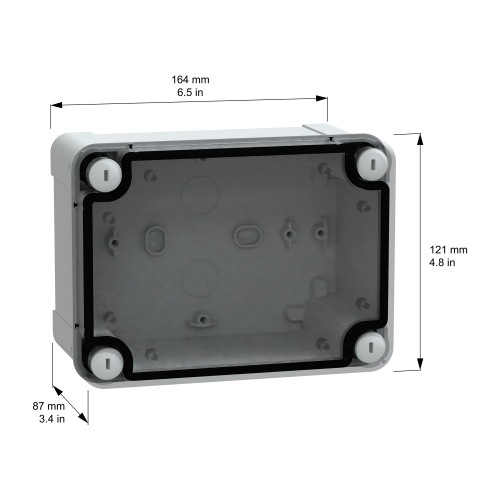

Ext is 164 x 121 x 87 mm

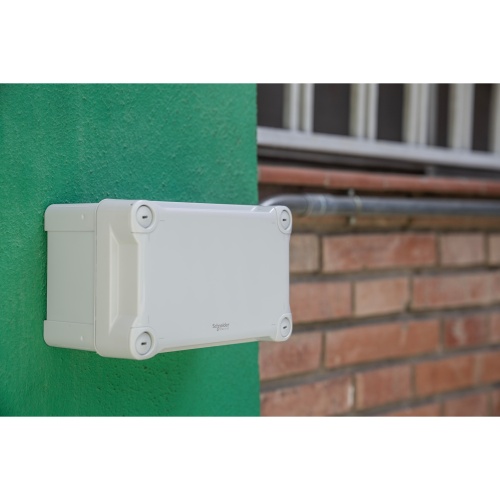

Wall mounted enclosure
Low transparent cover

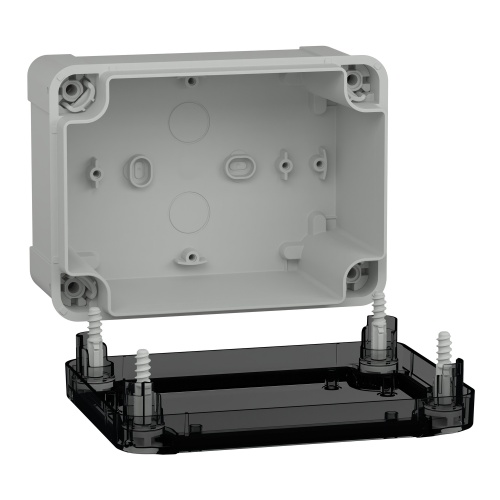

Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
