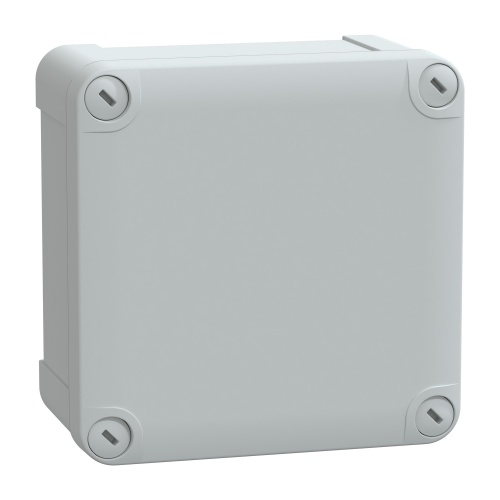

Schneider Electric NSYTBP11116 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 4.57" x 4.57" x 2.44" (HxWxD)
Normally In Stock
Code: 592135
Schneider Electric NSYTBP11116 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 4.57" x 4.57" x 2.44" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$19.81
Sale Price
$16.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

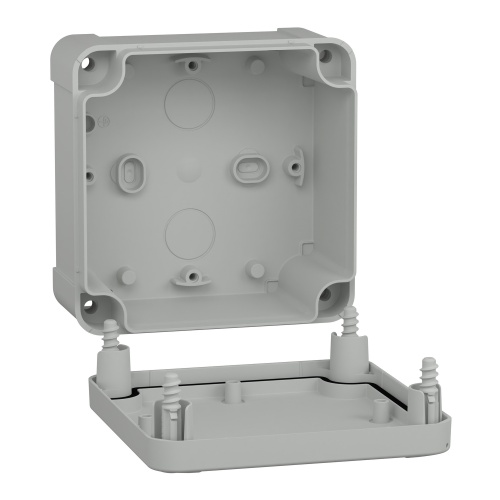

Schneider Electric NSYTBP11116 Thalassa TBP enclosure is designed for outdoor wall mounting. It is made of polycarbonate material in gray RAL 7035 color, with a captive screw flat outside sealed area for security. The removable cover is fastened with captive screws, while the low plain front cover is fixed with plastic screws. It has a temperature range of -13…176 °F (-25…80 °C) and a fire resistance of 1760 °F (960 °C). The internal dimensions are 4.13 in (105 mm) wide, 4.13 in (105 mm) high, and 2.17 in (55 mm) deep.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
2.44"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Height
4.57"
Enclosure Width
4.57"
Features
Thalassa TBP industrial PC box with opaque PC cover H10
Int is 105 x 105 x 55 mm

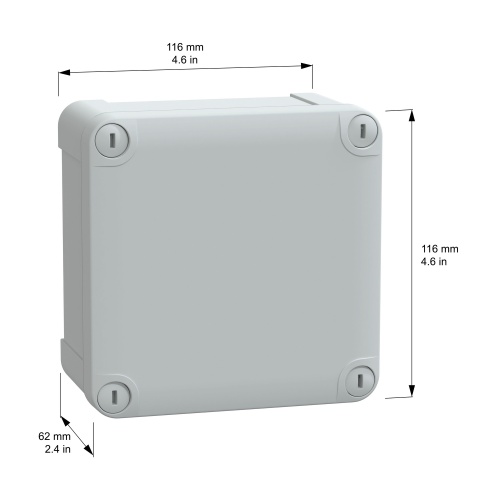

Ext is 116 x 116 x 62 mm

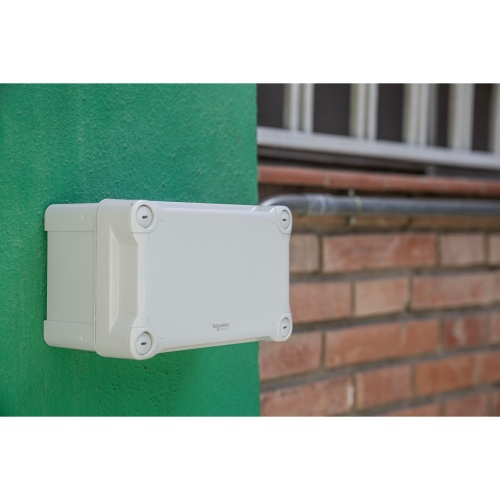

Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
