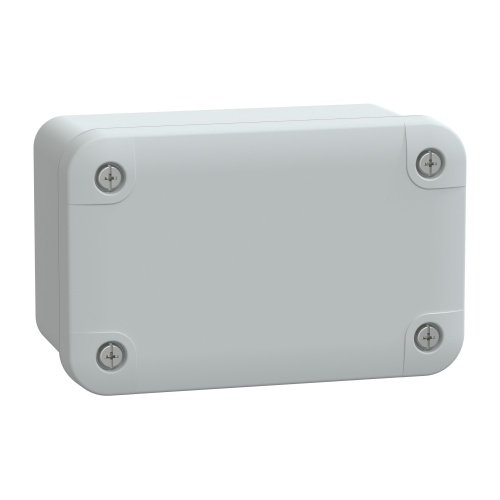

Schneider Electric NSYTBP1176 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 4.57" x 2.91" x 2.44" (HxWxD)
Normally In Stock
Code: 592137
Schneider Electric NSYTBP1176 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 4.57" x 2.91" x 2.44" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$18.71
Sale Price
$15.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa TBP is a gray wall-mounted enclosure made of polycarbonate material. It features a captive screw flat outside sealed area for secure locking, and a low plain cover fixed with metal screws. With an operating temperature range of -13 to 176 °F (-25 to 80 °C), it offers reliable protection for electronic components. Its compact internal dimensions of 2.56" x 4.13" x 2.17" (W x H x D) make it suitable for diverse applications.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
2.44"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Height
4.57"
Enclosure Width
2.91"
Features
Thalassa TBP industrial PC box with opaque PC cover H10
Int is 105 x 65 x 55 mm

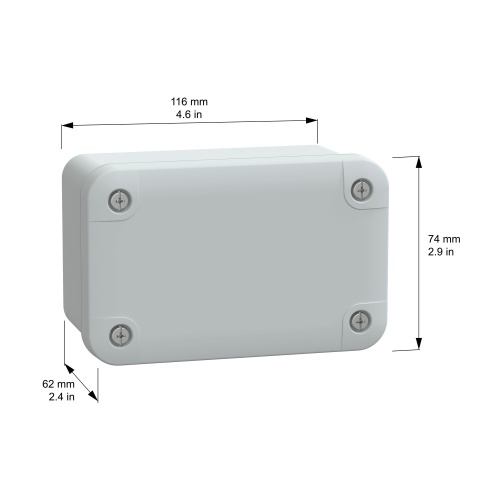

Ext is 116 x 74 x 62 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
