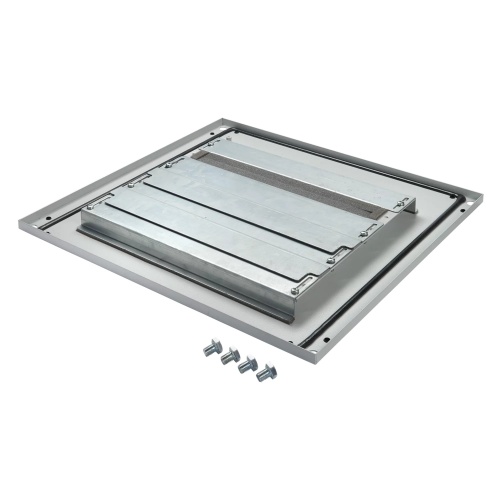

nVent Hoffman P2BGP64G PROLINE G2 Gland Plates
Normally In Stock
Code: 60409
nVent Hoffman P2BGP64G 600x400 mm PROLINE G2 Gland Plates
Condition: New
Usually ships Same Day or Next Day$208.81
Sale Price
$174.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2BGP64G PROLINE G2 Gland Plates Gland plates are used with a plinth base to provide cable management solutions while maintaining a NEMA 12 rating. PROLINE G2’s unique Duro-Stand Gland Plate was designed to bear the weight of a person, making it easier to work on the enclosure when the gland plate is installed.
Specifications
Component
Gland Plate
Line
PROLINE G2
Gland Plate Composition
Steel
Gland Plate Fits Cutout Size
600 X 400 mm
Manufacturer
Hoffman
Features
Sealed to maintain NEMA Type 12 rating
Number of plates varies with depth: 400 mm and 500 mm (3 plates), 600 mm (4 plates), 800 mm (6 plates), 1000 mm (8 plates)
Galvanized or painted versions
Gland Plates are finished with paint over plated surfaces
Sturdy, adjustable gland plates designed to bear the weight of a person
Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
Installation hardware included
Can be rotated 180 degrees for front or rear cable entry
Can be used without a base if casters, levelers or frame feet are installed
