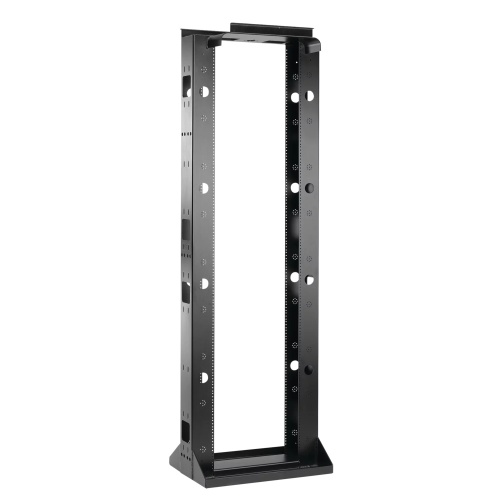

Hoffman ESDR19FM45U 87.0"x27.0"x19.0" Network Seismic 2-Post Open Frame Rack
Normally In Stock
Code: 62113
Hoffman ESDR19FM45U 87.0"x27.0"x19.0" Free Standing Network Seismic 2-Post Open Frame Rack
Condition: New
Usually ships Same Day or Next Day$2476.46
Sale Price
$1904.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman ESDR19FM45U 87.0"x27.0"x19.0" Free Standing Network Seismic 2-Post Open Frame Rack
Specifications
Component
Seismic Open Frame Rack
Seismic Component Rack Units
45
Seismic Component Interior Color
Black
Seismic Component Lock Type
None
Seismic Component Height
87.0"
Seismic Component Width
27.0"
Seismic Component Depth
19.0"
Seismic Component Composition
Steel
Manufacturer
Hoffman
Enclosure Number of Doors
1 Door
Features
Integral front waterfall top
Side rails are tapped on both sides with 12-24 UNC threads for quick installation
EIA Universal 5/8 - 5/8 - 1/2 inch vertical mounting-hole pattern matches industry standards and connects to most competitive racks
Pre-drilled holes on top to ease runway installation
Fits 19-inch rack-mount equipment
Nominal height is 7 feet (2.13 m) (45U)
Top and bottom cable entry cutouts
Rack is fully welded for maximum rigidity
Full complement of matching components for equipment and cable management
Ground provision with ground symbol
Downloads

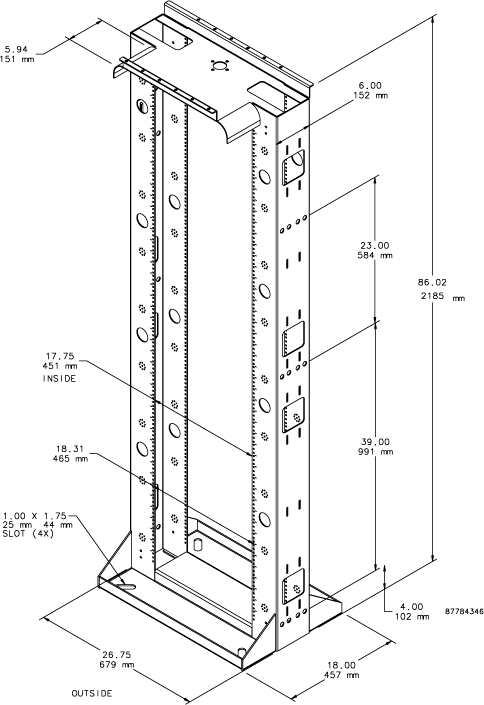

Hoffman ESDR19FM45U 2D DXF CAD.zipHoffman ESDR19FM45U 3D STEP CAD.zipHoffman ESDR19FM45U Declaration of Compliance.pdfHoffman ESDR19FM45U Dimension Drawing.gifHoffman ESDR19FM45U EU Certification.pdfHoffman ESDR19FM45U Instruction Manual.pdfHoffman ESDR19FM45U OSHPD OPM Calculations.pdfHoffman ESDR19FM45U OSHPD OPM, 2-Post Rack.pdfHoffman ESDR19FM45U Spec Sheet.pdfHoffman ESDR19FM45U UL Certification.pdf
