Hoffman T507030PM5 49.0"x74.0"x31.0" OPAL Pad-Mount DSL Cabinet
Normally In Stock
Code: 62170
Hoffman T843044FTTXDAB 94.0"x31.0"x51.0" Free Standing FTTX Fiber Optic Cabinet Package, Type 4X (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)$22680.22
Sale Price
$17446.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

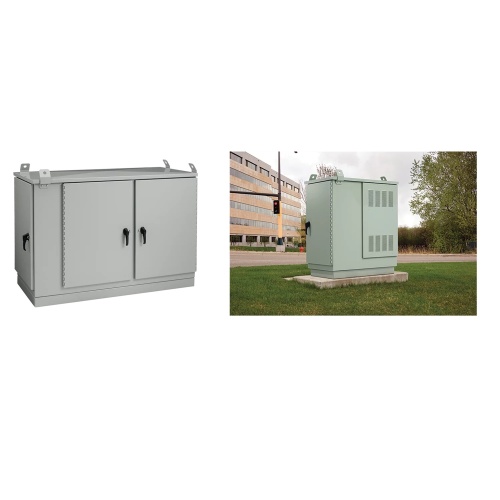

Hoffman T507030PM5 49.0"x74.0"x31.0" Free Standing OPAL Pad-Mount DSL Cabinet
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Composition
Aluminum
Enclosure Interior Color
Green
Enclosure Interior Color
Black
Enclosure Height
49.0"
Enclosure Width
74.0"
Component
OPAL Pad-Mount DSL Cabinet
Manufacturer
Hoffman
Line
OPAL
Enclosure Depth
31"
Enclosure Door Type
Solid
Enclosure Latch Type
Screw
Enclosure Number of Doors
1 Door
Enclosure Mount Type
Free Standing
Features
Rack angles have EIA universal spaced square holes and are infinitely adjustable front-to-back in compartment
Side compartment is ideal for cable entry, power distribution and load center
Copper bonding bars included with cabinet
Rack angles are predrilled for bend radius spools
Five-door model has two equal compartments and one side compartment
Offered with three or five doors mounted for front, rear and side access to equipment
Each compartment is capable of either 19- or 23-inch rack angle positioning
All doors have door switch, door (wind) stops and vault-style locking system
Bottom holes provided for bolting cabinet to concrete pad
L-handle is padlockable
Top has integral solar shield with formed angles providing a peaked roof to deflect rain water to the sides of the cabinet
Grounding and bonding studs provided on all doors and body
Three cable entry boots provided in side compartment
Four cable entry gland plates provided between side and central compartments
