Phoenix Contact 1600001 Female insert HCC 4-F
Normally In Stock
Code: 63325
HCC 4-F Phoenix 1600001 High current terminal block Screw connection 500 V 25 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$44.30
Sale Price
$36.92
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1600001 A 500V electrical connector with a 25A current capacity features ten connections and positions that can be secured using a screw connection method, allowing for direct mounting with a rated cross-sectional area of 4mm² and varying from 0.2mm² to 4mm², all encased in a gray-colored assembly.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused

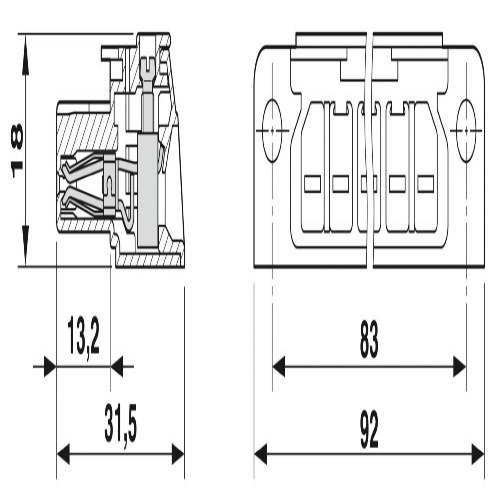

Terminal Block Width
92 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
10
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block High-current
High-current Terminal Block
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
25 Amp
Sub Component
High current terminal block
Sub Component
Female Insert
