Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

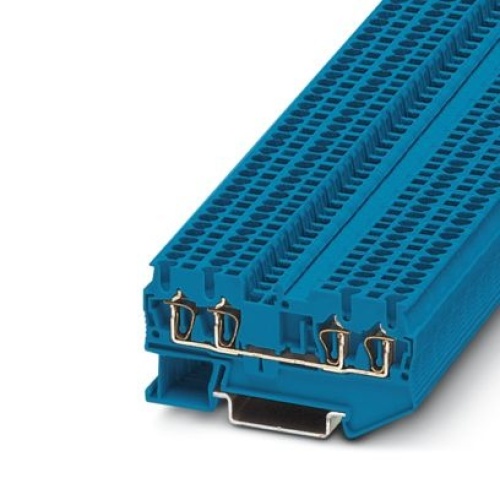

Phoenix Contact 3031199 Feed-through terminal block ST 1,5-QUATTRO BU
Normally In Stock
Code: 63532
ST 1,5-QUATTRO BU Phoenix 3031199 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp blue Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.46
Sale Price
$2.05
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031199 A feed-through terminal block with a nominal voltage of 500V and a nominal current capacity of 17.5A is available, featuring four connection points secured by spring-cage connections, with rated cross-sectional areas ranging from 0.08mm2 to 1.5mm2, mounted on an NS35/7.5 or NS35/15 base, and identified by a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Feed-through terminal block
Sub Component
Multi-conductor terminal block
Downloads
Phoenix 3031199 CAD data International.dxfPhoenix 3031199 CAD data International.pdfPhoenix 3031199 CAD data International.stpPhoenix 3031199 Certification English-2.pdfPhoenix 3031199 Data Sheet English.pdfPhoenix 3031199 Manufacturers declaration International.pdfPhoenix 3031199 Manufacturers declaration International-2.pdfPhoenix 3031199 Safety note English.pdfPhoenix 3031199 Tender Text English.zipPhoenix 3031199 User instructions for the Ex Area International.pdf
