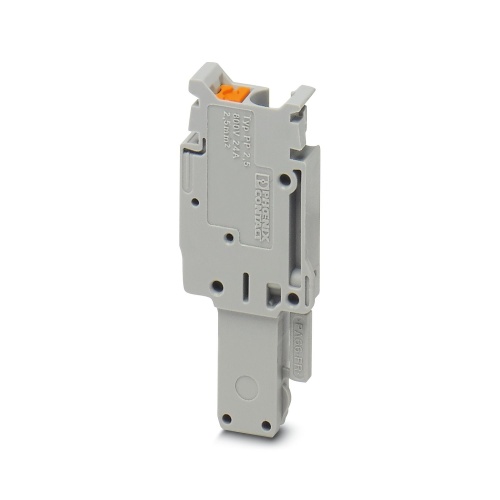

Phoenix Contact 3211271 Plug PP 2,5/ 1-L
Normally In Stock
Code: 63607
PP 2,5/ 1-L Phoenix 3211271 Terminal Plug Push-in connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.62
Sale Price
$1.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211271 The specified plug has a nominal voltage of 800 V and a nominal current of 24 A, with a single push-in connection and one position for installation. The rated cross-sectional area is 2.5 mm², spanning across 1 level, with a smaller cross-sectional area ranging from 0.14 mm² to 4 mm², and it features a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Component Color
Gray
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Jumper Pitch
5.2 mm
Terminal Block Amperage
24 Amp
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Maximum safety, thanks to touch-proof design
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Comprehensive, optional snap-on accessories available
Safe to use, thanks to powerful, vibration-proof plug-in contact
Flexible, thanks to plugs you can assemble yourself
Protection against mismatching, thanks to individual coding options
