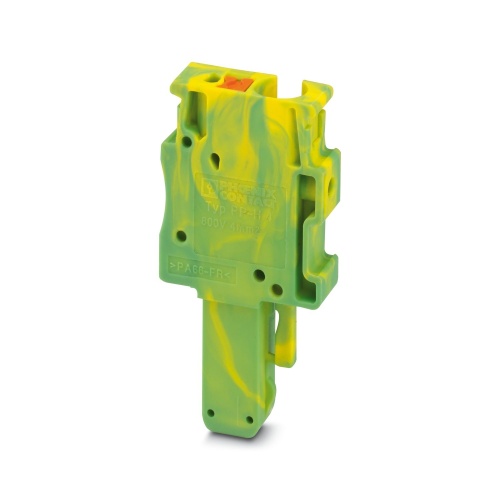

Phoenix Contact 3211958 Plug PP-H 4/ 1-L GNYE
Normally In Stock
Code: 63611
PP-H 4/ 1-L GNYE Phoenix 3211958 Terminal Plug Push-in / plug connection 800 V 32 Amp green-yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.88
Sale Price
$2.40
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211958 A single-phase plug with a nominal voltage of 800 V and a maximum current rating of 32 A has one connection point that uses a push-in connection method. The rated cross-sectional area is 4mm² and the first-level connections are available on the left-hand side, with additional smaller cross-sections ranging from 0.2 mm² to 6 mm², identified by a green-yellow color code.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Terminal Block Component Color
Green/Yellow
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
