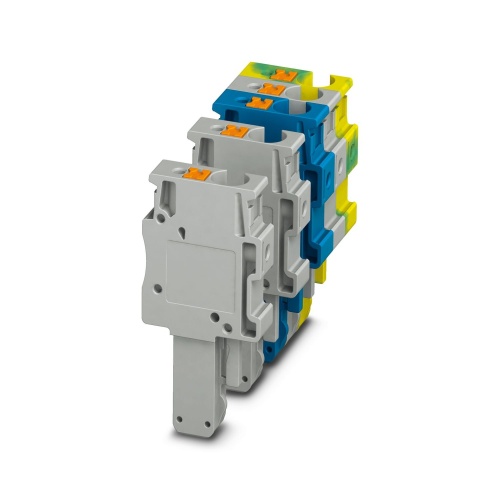

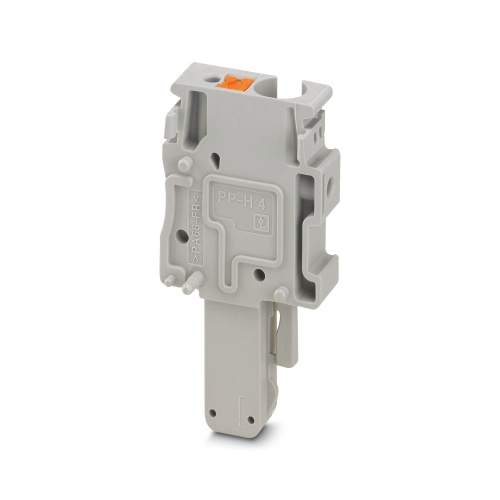

Phoenix Contact 3211965 Plug PP-H 4/ 1-M
Normally In Stock
Code: 63612
PP-H 4/ 1-M Phoenix 3211965 Terminal Plug Push-in / plug connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.94
Sale Price
$2.45
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211965 The plug features a nominal voltage rating of 800 V and a maximum current capacity of 32 A, utilizing a push-in connection method with one connection point, positioned at the left side of the first level. The available cross-sectional areas range from 0.2 mm² to 6 mm², indicated by a gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
1
Terminal Block Component Color
Gray
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Connection Method
Plug Connection
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
