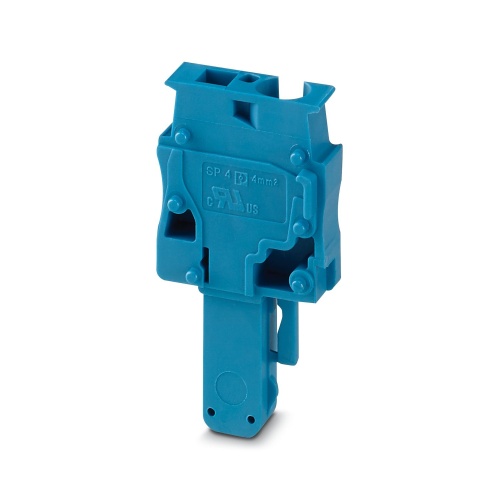

Phoenix Contact 3042793 Plug SP 4/ 1-M BU
Normally In Stock
Code: 63623
Phoenix 3042793 Terminal Plug Spring-cage connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.18
Sale Price
$2.65
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3042793 The plug has a high voltage rating of 800 V and can handle a nominal current of 32 A, featuring a single connection point secured by spring-cage clamps. Its cross-sectional area ranges from 0.08 mm2 to 6 mm2, with the actual size being 4 mm2 as rated, and is colored blue.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
Blue
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Jumper Number of Positions
1
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features
Cable housing can be snapped on to the plugs, see figure below
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Downloads
Phoenix 3042793 CAD data International.dxfPhoenix 3042793 CAD data International.pdfPhoenix 3042793 CAD data International.stpPhoenix 3042793 Data Sheet English.pdfPhoenix 3042793 Manufacturers declaration International.pdfPhoenix 3042793 Safety note English.pdfPhoenix 3042793 Tender Text English.zip
