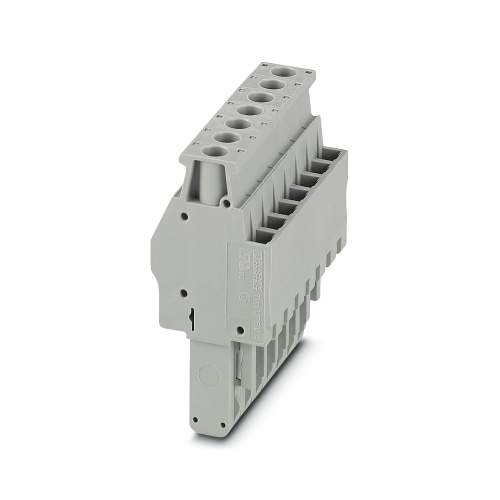

Phoenix Contact 3045868 Plug UPBV 4/ 7
Normally In Stock
Code: 63646
Phoenix 3045868 Terminal Plug Screw connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$14.28
Sale Price
$11.90
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3045868 The plug has a high voltage rating of 800V and a nominal current capacity of 32A, accommodating up to 7 positions for connections, secured by screw fasteners, with an average cross-sectional area of 4mm² and a minimum of 0.14mm² to a maximum of 6mm², distinguished by its gray color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Amperage
32 Amp
Jumper Pitch
6.2 mm
Terminal Block Width
43.4 mm
Jumper Number of Positions
7
Manufacturer
Phoenix Contact
Component
Plug
Component
Terminal Plug
Features

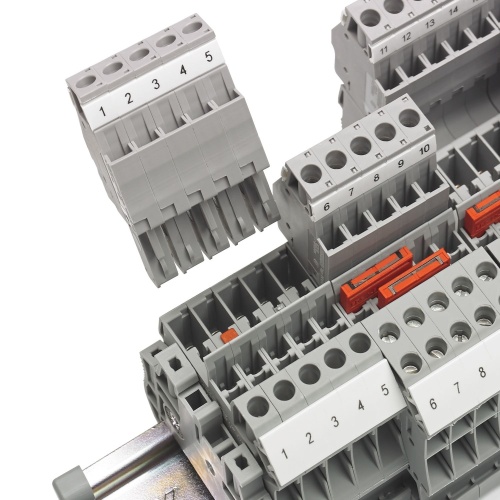

Can be bridged with FBS ... standard bridges
Connector with lateral conductor connection direction
The connected conductors can be led directly into the cable duct to save space
Downloads
Phoenix 3045868 CAD data International.dxfPhoenix 3045868 CAD data International.pdfPhoenix 3045868 CAD data International.stpPhoenix 3045868 Manufacturers declaration English.pdfPhoenix 3045868 Manufacturers declaration International.pdfPhoenix 3045868 Safety note English.pdfPhoenix 3045868 Tender Text English.zip
