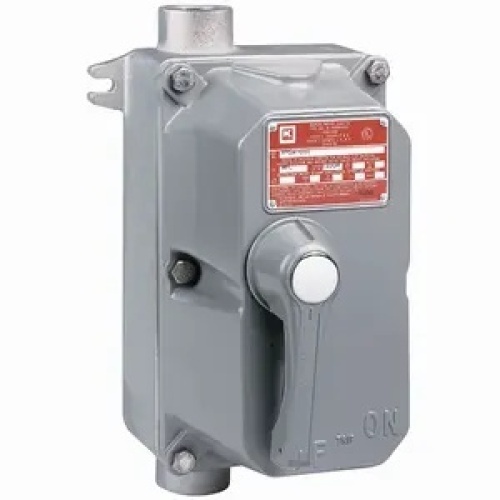

Killark XMSW-0CT Manual Starter - Three Pole, 5 HP
Normally In Stock
Code: 638862
Killark XMSW-0CT - Manual Motor Starter - NEMA Size 0 - 3-Pole; 3Ø, Ac - Class I, Divisions 1 & 2, Groups C, D - Class I, Zones 1 & 2, Groups IIB, IIA - Class II, Divisions 1 & 2, Groups E, F, G - Class III, Divisions 1 & 2
Condition: New
Usually ships Same Day or Next Day$3945.46
Sale Price
$3287.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Killark XMSW-0CT - Rectangular bolted cover design provides for attractive, compact, uniform installations.Enclosure and external handle are diecast copper-free (less than 0.4%) aluminum alloy.Cast “ON,” “OFF,” “TRIPPED” markings on cover align with external handle and provide clear indication of enclosed starter condition.External handle is a vault type with standard provisions for locking in the “OFF” position with up to three pad-locks.Provision for locking in “ON” position is available as factory modification (add suffix SU-40 to catalog number).Two cast 1” NPT conduit hubs with integral pipe stop, one top and one bottom, are standard on all assemblies. Killark's XMSW Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Specifications
Component
Manual Starter
Starter Poles
Three Pole
Starter HP
5 HP
Starter Maximum Voltage
600 VAC
Manufacturer
Killark
Features
Rectangular bolted cover design provides for attractive, compact, uniform installations.
Enclosure and external handle are diecast copper-free (less than 0.4%) aluminum alloy.
Cast “ON,” “OFF,” “TRIPPED” markings on cover align with external handle and provide clear indication of enclosed starter condition.
External handle is a vault type with standard provisions for locking in the “OFF” position with up to three pad-locks.
Provision for locking in “ON” position is available as factory modification (add suffix SU-40 to catalog number).
Two cast 1” NPT conduit hubs with integral pipe stop, one top and one bottom, are standard on all assemblies.
