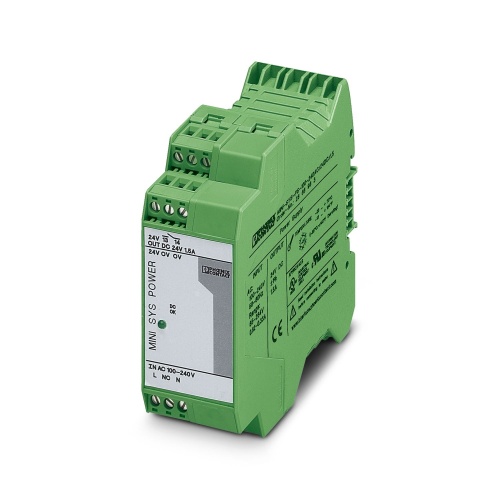

Phoenix Contact 2866983 Power supply MINI-SYS-PS-100-240AC/24DC/1.5
Code: 639
Phoenix Contact MINI-SYS-PS-100-240AC/24DC/1.5. 24 volt 1.5 Amp Slim Design Power Supply(Class 1 Div 2) and 85 Vac-264 Vac or 90 Vdc-350 Vdc input voltage. Din rail mount Screw Connection. Temperature range of -13 F to 158 F.
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
Phoenix Contact 2866983 For new systems, consider incorporating the 2904614Primary-switched MINI POWER power supply, designed for DIN rail mounting and capable of accepting a single-phase input to deliver 24V DC with an output current of up to 1.5A.
Specifications
Manufacturer
Phoenix Contact
Features
24 V DC output voltage
For supplying the supply voltage via the foot element (DIN rail connector) where AC voltages are available
100 V AC ... 240 V AC nominal input voltage range
Easy-maintenance connection technology thanks to keyed COMBICON connectors
For up to 60 MINI Analog modules
For up to 1.5 A, secondary
Status and error indication via diagnostic LEDs
