Schneider Electric NSYTBP1397 Thalassa TBP Industrial PC Box
Normally In Stock
Code: 655513
Schneider Electric NSYTBP1397 Polycarbonate Enclosure - 5.4" x 3.7" x 2.8" (HxWxD), NEMA 4/4X
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$27.85
Sale Price
$23.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Thalassa TBP industrial PC box features a low-profile design with an opaque PC cover and is designed for wall mounting, allowing for easy installation. The enclosure has a captive screw lock and meets various certifications such as DEMKO, SEMKO, TÜV, and UL 508 A, providing fire resistance up to 960°C. It is made from polycarbonate material with IP66 rating, suitable for harsh environments, and is available in a set of five units with insulation class II, suitable for temperatures ranging from -15 to 60°C (-25 to 80°C).
Specifications
Enclosure Composition
Polycarbonate
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
3.7"
Component
Non-Metallic Enclosure
Enclosure Height
5.4"
Enclosure Depth
2.8"
Features
Thalassa TBP industrial PC box with opaque PC cover H20

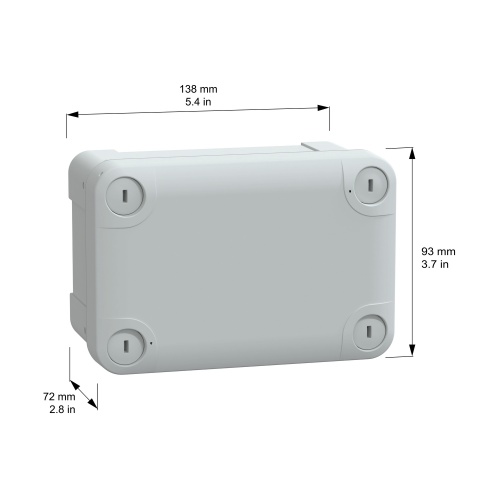

Int is 125 x 80 x 65 mm
Ext is 138 x 93 x 72 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
