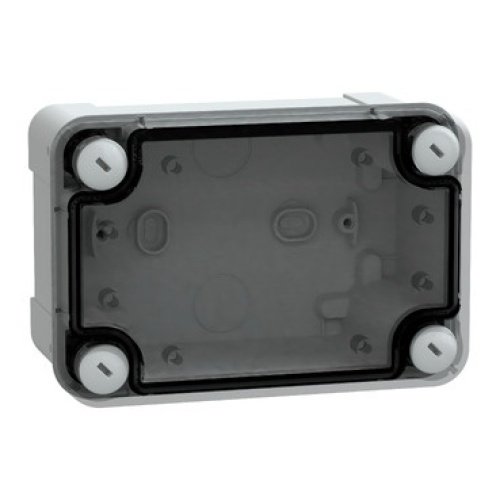

Schneider Electric NSYTBP1397T Thalassa TBP Industrial PC Enclosure
Normally In Stock
Code: 655514
Schneider Electric NSYTBP1397T Polycarbonate Enclosure - 5.4" x 3.7" x 2.8" (HxWxD), NEMA 4/4X
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$34.26
Sale Price
$28.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

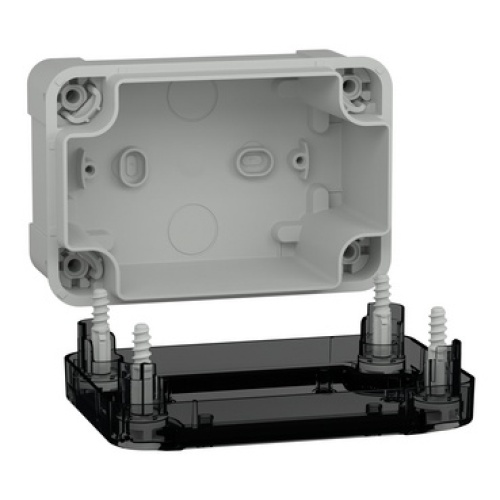

The Thalassa TBP industrial PC box features a transparent polycarbonate cover and has dimensions of 125 x 80 x 65 mm, with an external size of 138 x 93 x 72 mm. It is wall-mounted and comes with a sealed exterior and a captive screw lock. The product meets various certifications including DEMKO, SEMKO, TÜV, and UL, with a fire resistance rating of 960°C and insulation Class II. It also has IP66 (NEMA 4.4X) and IK08 ratings, making it suitable for use in harsh environments.
Specifications
Enclosure Composition
Polycarbonate
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Manufacturer
Schneider Electric
Enclosure Width
3.7"
Component
Non-Metallic Enclosure
Enclosure Height
5.4"
Enclosure Depth
2.8"
Features
Thalassa TBP industrial PC box with transparent PC cover H20

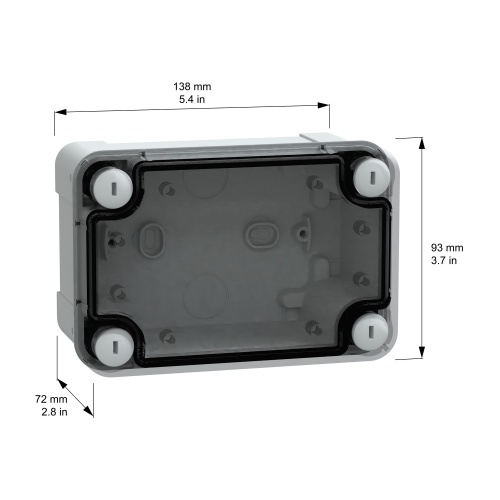

Int is 125 x 80 x 65 mm
Ext is 138 x 93 x 72 mm
Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
