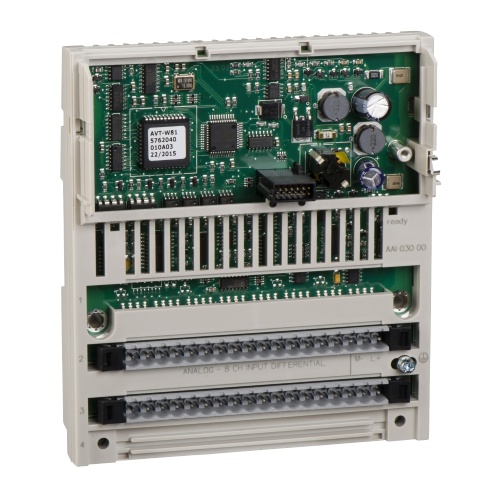

Schneider Electric 170AAI52040 Modicon Momentum Analog Input Base
Normally In Stock
Code: 658998
Schneider Electric 170AAI52040 - distributed analog input Modicon Momentum - 4 Input
Condition: New
Usually ships Same Day or Next Day$2141.93
Sale Price
$1784.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Modicon Momentum input base is part of the controller and IP20 monoblock I/Os family, offering 4 analog inputs with a full 16-bit resolution and differential ranges from ±100mV to ±25mV, featuring 500V AC isolation and removable terminal blocks for electrical connection, with dimensions of 141.5mm x 47.5mm x 125mm and weighing 0.215kg, suitable for infrastructure, energy, material handling, and machine control applications and certified by CE, FM Class 1 Division 2, CSA, and UL.
Specifications
Manufacturer
Schneider Electric
Features
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture
This analog input base offers 4 inputs with a full 16bit signed resolution
It offers differential analog input ranges from ±100mV, ±25mV
There is an isolation between channels and bus, channels and ground at 500V AC
It is furnished with 2 removable terminal blocks for electrical connection
It features 4 LEDs for channel status signaling
Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height)
It weighs 0.215kg
The main application of this module is infrastructures and energy, material handling, simple machine control
This product is certified by CE, FM Class 1 Division 2, CSA and UL
It is suitable for wall mount
Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications
System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
