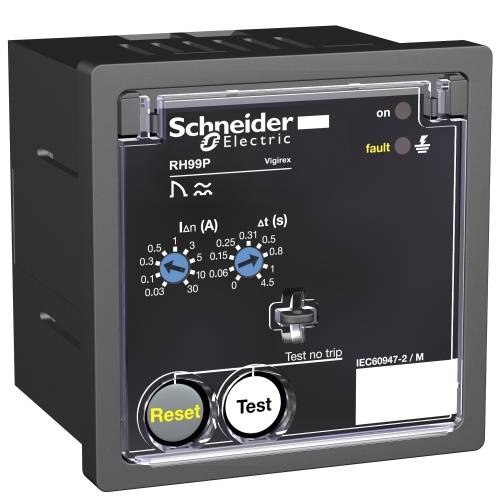

Schneider Electric 56270 VigiPacT RH99P Front Panel RCD Relay
Normally In Stock
Code: 659532
Schneider Electric 56270 Current Monitoring Relay - 30 mAmp
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2018.38
Sale Price
$1681.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The VigiPacT RH99P is a front panel mounting residual current protection relay that protects against human contact, fires, and motor hazards, measuring earth leakage currents through its toroidal sensor to trip circuit breakers when set thresholds are exceeded, operating within 12/24VAC 50/60Hz or 12/48VDC.
Specifications
Component
Current monitoring relay
Manufacturer
Schneider Electric
Relay Load Amperage
30 mAmp
Features
VigiPacT RH99P is a front panel mounting residual current protection relay
It protects against people direct or indirect contact, property fire hazards and motors
It measures the earth leakage current in an electrical installation via its associated toroid
It trips the associated circuit breaker when the set residual operation current is overrun
The operational supply voltage is 12/24VAC 50/60Hz, or 12/48VDC
It is a type A earth-leakage protection class
The current sensitivity is selectable with 9 thresholds from 30 mA to 30 A
The time delay is selectable with 9 settings from instantaneous to 4.5s
It requires a local manual reset after a fault clearance
The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz
It is installed on a front panel switchboard and the protection degree is IP40
It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
