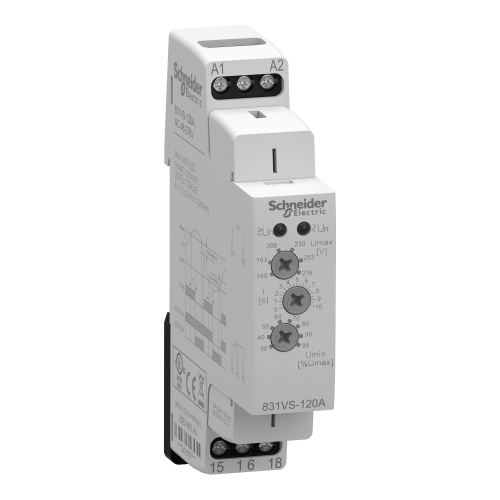

Schneider Electric 831VS-120A Voltage Sensor Relay Description
Normally In Stock
Code: 659676
Schneider Electric 831VS-120A Voltage monitoring relay - SPDT, 15 Amp
Condition: New
Usually ships Same Day or Next Day$228.20
Sale Price
$190.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The SE Relays 831 series voltage sensor is designed to be wired across terminals A1 and A2 with the voltage being monitored, capable of detecting overvoltage and undervoltage conditions, and features adjustable trip points via the Umax and Umin dials, a 15A rated silver alloy contact relay with delayed transfer options, and three-state indication LEDs for normal and faulted states.
Specifications
Component
Voltage monitoring relay
Manufacturer
Schneider Electric
Relay Load Amperage
15 Amp
Relay Throws
SPDT
Features
The SE Relays 831 series voltage sensor,,single-phase AC voltage sensing device is designed to be wired across terminals A1 and A2 with the voltage being monitored
Voltage sencor is capable of monitoring and reacting to overvoltage and undervoltage conditions
The Umax dial is used to set the upper trip-point of,85VAC to 150VAC,for the voltage sensor
The Umin dial is a 30–99% of upper preset of the Umax dial and is used to set the lower trip-point for the voltage sensor
Relay has SPDT silver alloy contacts, rated 15A at,12VAC
The timing dial is used to delay the transfer of the contacts, from 0s to 10s, when a set point has been violated
Three-state indication LEDs indicates normal state by green LED and two types of faulted states by blinking red LED as timing state and steady on red LED as energized relay
Direct mount on a 35mm DIN rail, narrow width 17.5mm makes this relay ideal for tight spaces.
