Schneider Electric 831VS-240A The SE Relays 831 Series Voltage Sensor
Normally In Stock
Code: 659732
Schneider Electric 831VS-240A Voltage monitoring relay - SPDT, 15 Amp
Condition: New
Usually ships Same Day or Next Day$235.00
Sale Price
$195.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

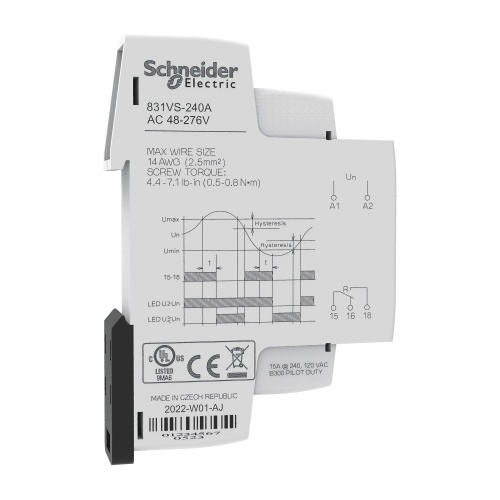

The SE Relays 831 series voltage sensor is designed to be wired across terminals A1 and A2 with the voltage being monitored, capable of detecting overvoltage and undervoltage conditions through the Umax and Umin dials, which set the upper and lower trip-points respectively. The relay has SPDT silver alloy contacts rated at 15A at 12VAC, allowing for a 10-second delay before transferring the contacts as specified on the timing dial, with three-state indication LEDs indicating normal or faulty states via different colors of red or green LED lights.
Specifications
Component
Voltage monitoring relay
Manufacturer
Schneider Electric
Relay Load Amperage
15 Amp
Relay Throws
SPDT
Features
The SE Relays 831 series voltage sensor,,single-phase AC voltage sensing device is designed to be wired across terminals A1 and A2 with the voltage being monitored
Voltage sencor is capable of monitoring and reacting to overvoltage and undervoltage conditions

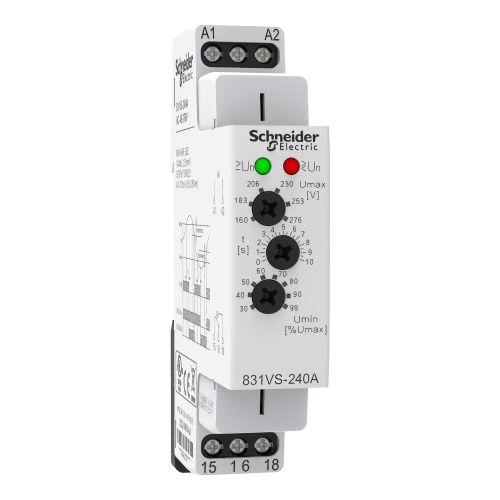

The Umax dial is used to set the upper trip-point of,85VAC to 150VAC,for the voltage sensor
The Umin dial is a 30–99% of upper preset of the Umax dial and is used to set the lower trip-point for the voltage sensor
Relay has SPDT silver alloy contacts, rated 15A at,12VAC
The timing dial is used to delay the transfer of the contacts, from 0s to 10s, when a set point has been violated
Three-state indication LEDs indicates normal state by green LED and two types of faulted states by blinking red LED as timing state and steady on red LED as energized relay

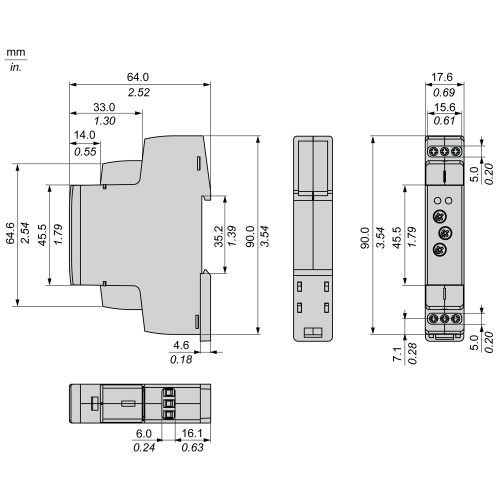

Direct mount on a 35mm DIN rail, narrow width 17.5mm makes this relay ideal for tight spaces.
