Phoenix Contact 2896034 Upper housing part BC 35,6 OT U11 KMGY
Normally In Stock
Code: 676085
Phoenix Contact BC 35,6 OT U11 KMGY - Upper housing part, 3.5" x 1.4" x 2" (HxWxD), Polycarbonate - 2896034
Condition: New
Usually ships Same Day or Next Day$5.00
Sale Price
$4.17
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

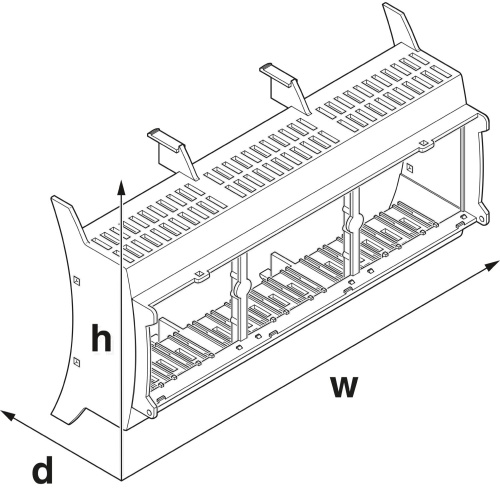

Phoenix Contact 2896034 The DIN rail housing is designed for use in distribution boards and meets the standards outlined in DIN 43880. Specifically, it consists of an upper part with vents, featuring dimensions of 35.6mm width, 89.7mm height, 49.78mm depth, and a connection technology allowing installation at a depth of 11.1mm. The housing is available in a light gray color that matches RAL 7035, providing a standardized and compatible option for distribution board installations.
Specifications
Enclosure Depth
2"
Enclosure Composition
Polycarbonate
Enclosure Height
3.5"
Manufacturer
Phoenix Contact
Enclosure NEMA Rating
IP20
Component
DIN Rail Housing
Enclosure Width
1.4"
Features
Coordinated housing and connection system for faster device development
Individual online configuration for diverse applications in building automation
Variety of connection technology
Can be mounted on the DIN rail or the wall
With DIN-rail-mountable bus connector and power connector system as an option
Tool-free mounting
Available in overall widths from 1 ... 9 width units (17.8 mm ... 161.6 mm)
Compliant with DIN EN 43880
Downloads
2d view (pcb outline).dxfPhoenix Data Sheet.pdfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_10.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_2.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_3.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_4.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_5.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_6.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_7.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_8.dxfpxc_2896034_01_00_BC-35-6-OT-U11-KMGY_PCB2D_BC-PCB-1-11-EXAMPLE-BC-35-6-U11_9.dxfpxc_2896034_01_03_BC-35-6-OT-U11-KMGY_APP3D_BC-35-6-OT-U11.stpsimplified 3d model of the item.stpSpecification Sheet.pdf
