Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

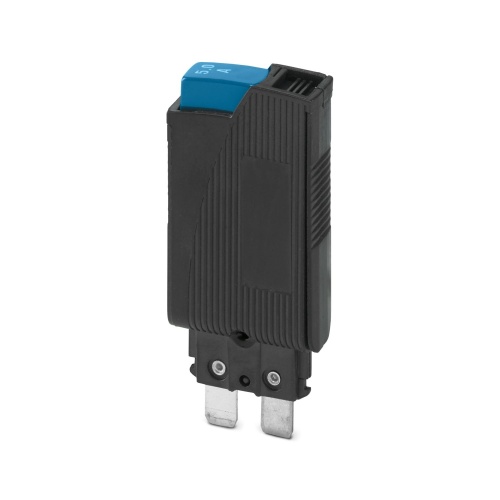

Phoenix Contact 1538622 Thermal Circuit Breaker
Normally In Stock
Code: 676754
Protects loads up to 250V AC & 72V DC with reliable thermal device circuit breaker for safe industrial operation
Condition: New
Usually ships Same Day or Next Day$24.02
Sale Price
$20.02
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

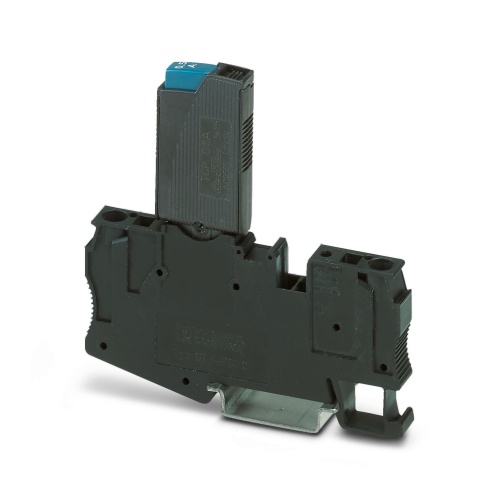

The Phoenix Contact 1538622 is a one-channel thermal device circuit breaker designed to protect loads at 250V AC and 72V DC from overloads. Suitable for fuse terminal blocks with flat plug-in fuses, it provides reliable overload protection with a fixed nominal current rating of 5A
Specifications
Breaker Voltage Rating
250 VAC
Manufacturer
Phoenix Contact
Component
Thermal device circuit breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
