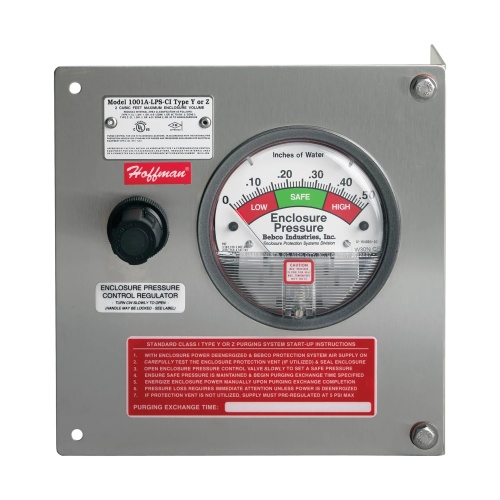

nVent Hoffman A1001YZUMC1 Small-Volume Purging/Pressurization System 2 CF
Normally In Stock
Code: 6797
nVent Hoffman A1001YZUMC1 Purging Pressurization System 2 CF
Condition: New
Usually ships Same Day or Next Day$2448.54
Sale Price
$2040.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman A1001YZUMC1 Small-Volume Purging/Pressurization System 2 CF nVent Hoffman A1001YZUMC1 Purging Pressurization System 2 CF
Specifications
Purging Max Enclosure Volume
2 Cubic Feet
Purging Hazardous Classification
Class 1 Div 1 Group A
Purging Hazardous Classification
Class 1 Div 1 Group B
Purging Hazardous Classification
Class 1 Div 1 Group C
Purging Hazardous Classification
Class 1 Div 1 Group D
Purging Hazardous Classification
Class 1 Div 2 Group A
Purging Hazardous Classification
Class 1 Div 2 Group B
Purging Hazardous Classification
Class 1 Div 2 Group C
Purging Hazardous Classification
Class 1 Div 2 Group D
Component
Purge And Pressurization
Sub Component
Small-Volume Purging/Pressurization System
(Pressure-Humidity Component) Composition
Stainless Steel
Manufacturer
Hoffman
Features
Enclosure pressure gauge: aluminum with enamel finish
Mounting plate: Type 316L stainless steel
Regulator body: zinc with enamel finish
Polycarbonate regulator handle
Available in two models for enclosures with a maximum enclosure volume of up to 2 or 10 cubic feet
Universal mount
Fastener hardware available in aluminum and stainless steel
Note: pressure Vent not required when inlet pressure limited to 5PSI using standard TR-10G. For inlet pressure over 5PSI order EPV-1-SA-00 or EPV-1-SA-90 separately. Contact HOFFMAN for pricing.
Includes tamper-proof regulator with gauge (TR-10G) to comply with NFPA standard requiring protection against over pressurization
Downloads
Hoffman A1001YZUMC1 2D DXF CAD.zipHoffman A1001YZUMC1 3D STEP CAD.zipHoffman A1001YZUMC1 CAD Drawing.zipHoffman A1001YZUMC1 Declaration of Compliance.pdfHoffman A1001YZUMC1 Dimension Drawing.gifHoffman A1001YZUMC1 Instruction Manual.pdfHoffman A1001YZUMC1 Spec Sheet.pdfHoffman A1001YZUMC1 User Manual.pdf
Code: 6797
nVent Hoffman A1001YZUMC1 Small-Volume Purging/Pressurization System 2 CF
$2448.54
Sale Price
$2040.45
