Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 1088478 Power supply STEP3-PS/1AC/24DC/5/PT
Normally In Stock
Code: 68250
STEP3-PS/1AC/24DC/5/PT Phoenix 1088478 Power supply 100 VAC - 240 VAC -15 % - +10 % 5 Amp 100 VAC - 240 VAC -15 % - +10 % Power Supplies and UPS
Condition: New
Usually ships Same Day or Next Day$108.73
Sale Price
$90.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

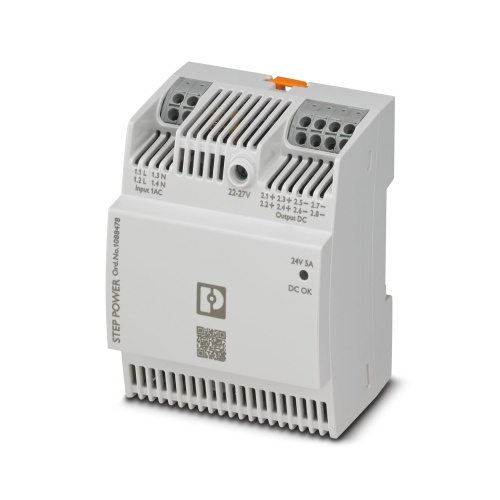

Phoenix Contact 1088478 The STEP POWER primary-switched power supply unit features a push-in connection and can be mounted on either a DIN rail or directly. It accepts a 1-phase input and produces a 24V DC output with a maximum capacity of 5A, allowing for adjustable voltage settings between 22V DC and 27V DC.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
100 VAC - 240 VAC
Features
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)

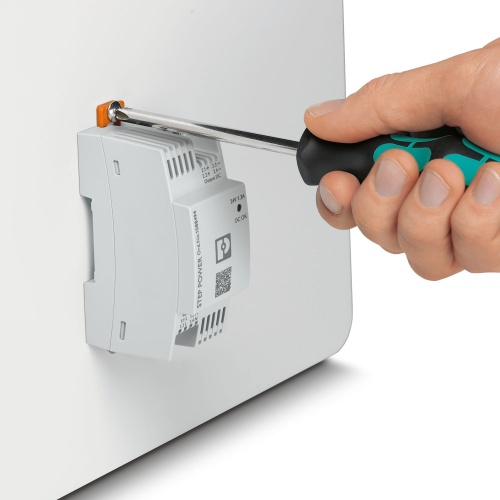

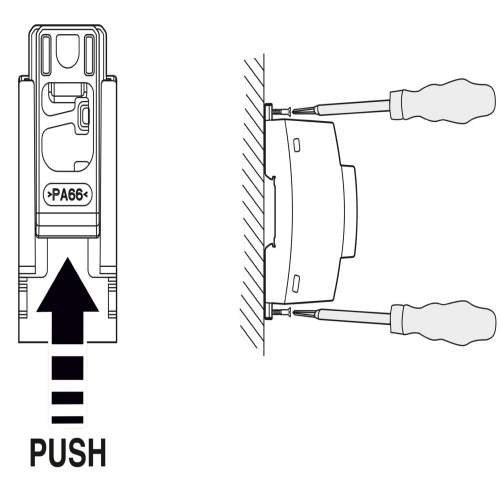

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
