Schneider Electric PCSP060D2N2 Active Power Correction Solution
Normally In Stock
Code: 689808
Schneider Electric PCSP060D2N2 - Active harmonic filter 60 amp 208-240 VAC N2 Enclosure
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$104778.62
Sale Price
$87315.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
This active power correction solution from AccuSine is designed for harsh electrical conditions in heavy industrial applications with mission-critical environments, providing harmonic mitigation, power factor correction, and load balancing while being UL Type 2 certified for 208-240V low-voltage networks and achieving THDi of 3% or less.
Specifications
Manufacturer
Schneider Electric
Component
Active Harmonic Filter
Features
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing
It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments
This version is UL Type 2, and can be connected on Low Voltage networks rated 208 Volt to 240 Volt
It is specified for a standard Root Mean Square output current rating of 60 Amps
The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey
This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM
And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014
Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set

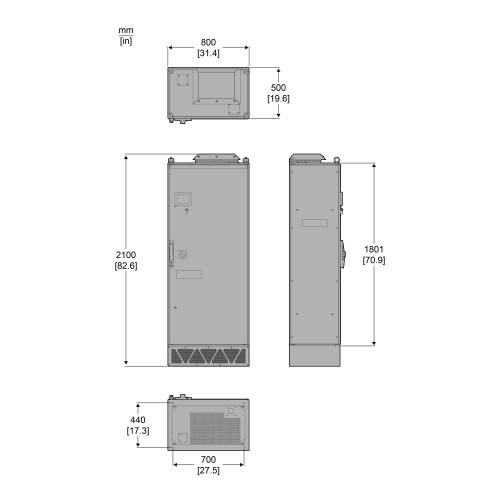

Frame exterior dimensions are 800 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 277 kg.
