Schneider Electric PCSP300D2IP00 Power Correction Solution for Electrical Networks
Normally In Stock
Code: 689809
Schneider Electric PCSP300D2IP00 - Active harmonic filter 300 amp 208-240 VAC IP00 Enclosure
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$192450.47
Sale Price
$160375.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The active power correction solution from AccuSine family is designed for harsh industrial environments and provides harmonic mitigation, power factor correction, and load balancing to stabilize electrical networks, operating within UL Type OPEN and IP00 standards on low voltage networks up to 240 Volts with a maximum output current rating of 300 Amps.
Specifications
Manufacturer
Schneider Electric
Component
Active Harmonic Filter
Features
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing
It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments
This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 208 Volt to 240 Volt
It is specified for a standard Root Mean Square output current rating of 300 Amps
The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey
This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM
And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014
Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set

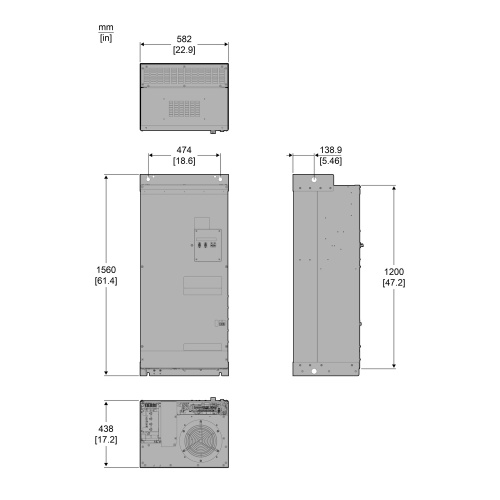

Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1560 millimetres in height and product weight 210 kg.
