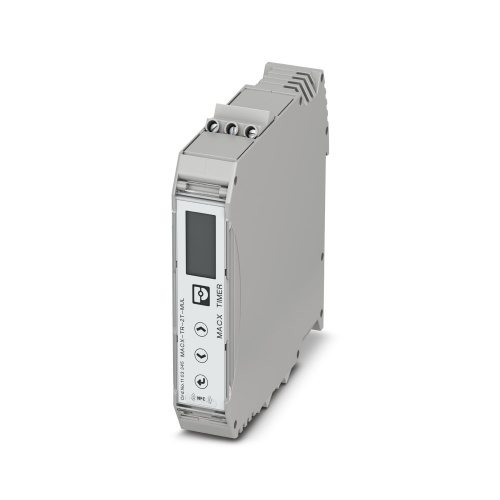

Phoenix Contact 1103345 Time Relay 14 Function AC/DC Power
Normally In Stock
Code: 69015
Customizable time relay with 10ms-999hr60min timing range, password protection, and sensor compatibility for industrial applications
Condition: New
Usually ships within 7-14 days. Call for ship time.$241.32
Sale Price
$201.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 1103345 multifunctional time relay offers a wide range of supply options, featuring 14 functions including adjustable timing, customizable settings, and password protection. It supports various input types such as dry contacts and proximity switches, with two programmable timer devices connected via screw terminals
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Application
Input Function
Relay Contact Material
AgSnO2
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Poles
Double Pole
Relay Timing Range
1
Manufacturer
Phoenix Contact
Component
Timer Relay
Relay Load Voltage AC Rating
400 Volt
Coil Voltage Rating
24-240 Volt
