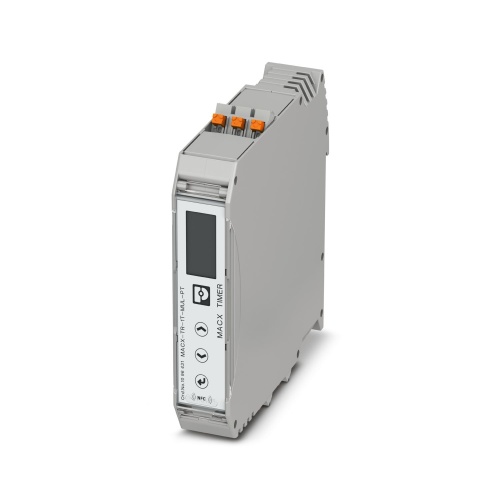

Phoenix Contact 1096431 Timer relay MACX-TR-1T-MUL-PT
Normally In Stock
Code: 69029
Phoenix 1096431 Timed relay 2floatingPDTcontacts 24 VAC/DC - 240 VAC/DC (-15% - +10%) Push-in connection Input Function Relays
Condition: New
Usually ships Same Day or Next Day$163.75
Sale Price
$136.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

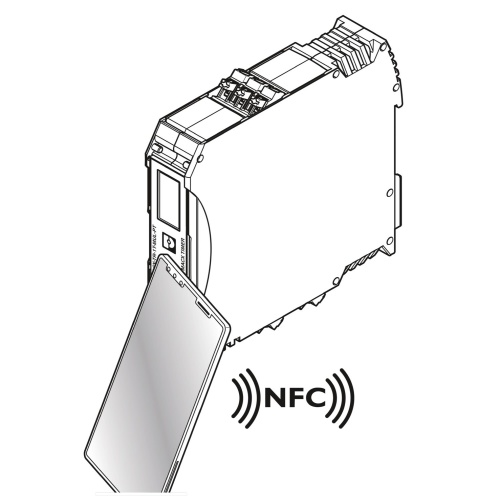

Phoenix Contact 1096431 A multifunctional time relay offers a wide range of supply options with 24V AC/DC power, including a wide-range supply up to 240V AC/DC, making it suitable for various applications. The device boasts 13 functions, allowing for flexibility in its uses, and features an adjustable time setting, as well as Ip and Ii functions. Users can adjust the time range from 10 milliseconds to 999 hours and 59 minutes, with two configuration options available. Additionally, the relay includes password protection and supports dry contacts, PNP and NPN proximity switch inputs, and has two plug-in connection points, making it a versatile and convenient option for various applications.
Specifications
Relay Throws
Double Throw
Relay Mounting
Din Rail
Relay Connection Type
Push-in connection
Relay Application
Input Function
Floating (Isolated Dry Contacts)
Floating Isolated Contacts
Relay Contact Material
AgNi (90-10)
Relay Poles
Double Pole
Relay Timing Range
1
Manufacturer
Phoenix Contact
Component
Timer Relay
Relay Load Voltage AC Rating
400 Volt
Coil Voltage Rating
24-240 Volt
