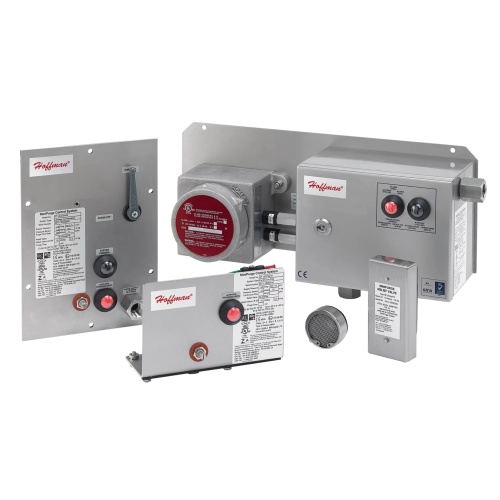

Hoffman PCFSKIT Purge and Pressurization System Continuous Flow Service Kit
Normally In Stock
Code: 69383
Hoffman PCFSKIT Hazardous Location Purge/Pressure systems Accessories
Condition: New
Usually ships Same Day or Next Day$347.10
Sale Price
$290.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hoffman PCFSKIT Purge and Pressurization System Continuous Flow Service Kit Purge and Pressurization is a protection method used with Type 4, 4X and 12 (IP54 recommended minimum) enclosures. The enclosure is initially purged to remove any internal explosive gases or dust. Once this is accomplished, the enclosure is pressurized with a protective air or inert gas supply. This provides a positive internal enclosure pressure which keeps any external explosive gases or dust from entering the enclosure.
Specifications
Component
Purge and Pressurization
(Pressure-Humidity Component) Mount Type
Flush Mount
(Pressure-Humidity Component) Mount Type
Exterior Mount
(Pressure-Humidity Component) Operation Type
Continuous Flow
Sub Component
Continuous Flow Service Kit
(Pressure-Humidity Component) Composition
Stainless Steel
Manufacturer
Hoffman
Features
All models utilize dry, clean inert gas supply of 60 PSI (4 bar) to 115 PSI (8 bar)
Local visual indicators provide system status
Leak compensation models are equipped with rapid purge valve and visual purge status indicator
Ambient operating temperature -4F (-20C) to 131F (55C)
Space-saving flush or exterior mounted models available
All exterior components are 316 stainless steel or corrosion-resistant composite
Type X models provide automatic purge cycle and 4PNO/20A/440VAC power contactor with 115 VAC or 230 VAC coil
