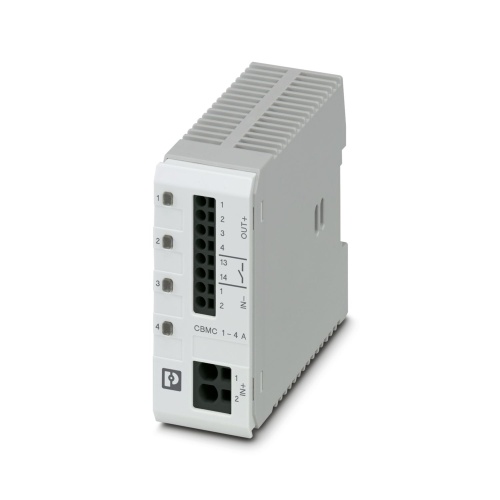

Phoenix Contact 2906031 Electronic circuit breaker CBMC E4 24DC/1-4A NO
Normally In Stock
Code: 70833
CBMC E4 24DC/1-4A NO Phoenix 2906031 Device circuit breakers max. 16 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships Same Day or Next Day$161.62
Sale Price
$134.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2906031 A multi-channel electronic circuit breaker designed to safeguard four power supplies at a voltage of 24V DC from excessive loading or electrical shorts, featuring automatic locking of pre-set current levels for safe and reliable operation, ideally suited for mounting on standard DIN rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
16 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features
Reliable protection against unintentional adjustment of current values, thanks to electronic locking
Circuits can be adjusted without any tools by means of one single pushable LED button

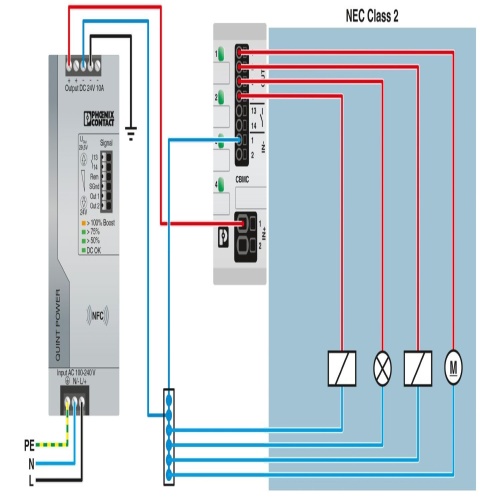

Optimum protection for cables and sensors as well as NEC Class 2 circuits by means of an additional internal output fuse
Easy device replacement without replanning, thanks to compact design and options for individual adjustments

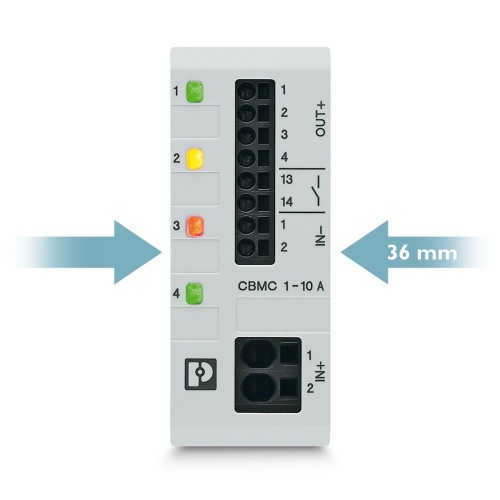

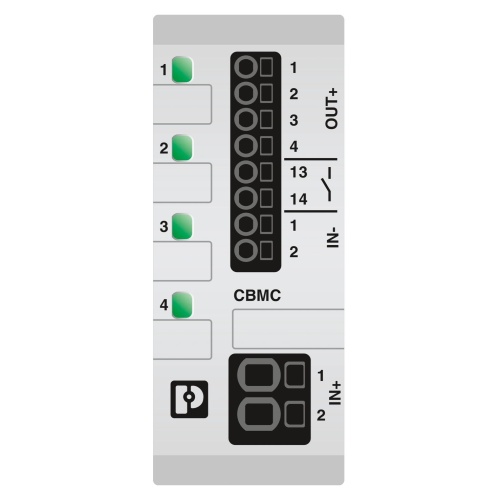

Status LEDs in traffic light colors enable instantaneous determination of operating states
Downloads
Phoenix 2906031 CAD data International.dxfPhoenix 2906031 CAD data International.pdfPhoenix 2906031 CAD data International.stpPhoenix 2906031 Flyer English.pdfPhoenix 2906031 Flyer English-2.pdfPhoenix 2906031 Manufacturers declaration English.pdfPhoenix 2906031 Manufacturers declaration International.pdfPhoenix 2906031 Package Slip International.pdfPhoenix 2906031 Product Information English.pdfPhoenix 2906031 Tender Text English.zipPhoenix 2906031 Various English.pdf
