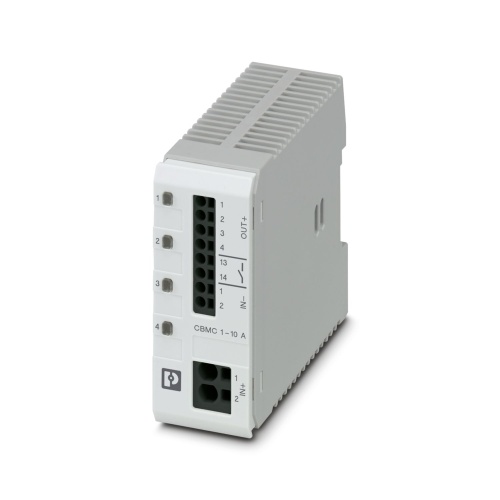

Phoenix Contact 2906032 Electronic circuit breaker CBMC E4 24DC/1-10A NO
Normally In Stock
Code: 70844
CBMC E4 24DC/1-10A NO Phoenix 2906032 Device circuit breakers max. 40 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships Same Day or Next Day$161.62
Sale Price
$134.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2906032 A multi-channel electronic circuit breaker designed to safeguard four loads running at 24V DC, it automatically intervenes when an overload or short circuit occurs, while also featuring electronic locking for setting predetermined nominal current levels, and is suitable for mounting on standard DIN rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
40 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Features
Status LEDs in traffic light colors enable instantaneous determination of operating states
Circuits can be adjusted without any tools by means of one single pushable LED button
Reliable protection against unintentional adjustment of current values, thanks to electronic locking
Easy device replacement without replanning, thanks to compact design and options for individual adjustments
Downloads
Phoenix 2906032 CAD data International.dxfPhoenix 2906032 CAD data International.pdfPhoenix 2906032 CAD data International.stpPhoenix 2906032 Flyer English.pdfPhoenix 2906032 Flyer English-2.pdfPhoenix 2906032 Manufacturers declaration English.pdfPhoenix 2906032 Manufacturers declaration International.pdfPhoenix 2906032 Package Slip International.pdfPhoenix 2906032 Product Information English.pdfPhoenix 2906032 Tender Text English.zipPhoenix 2906032 Various English.pdf
