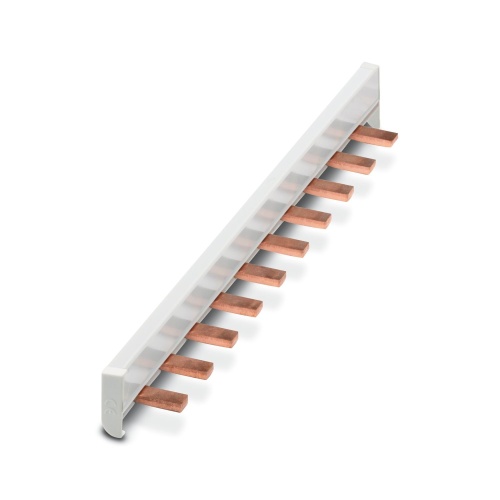

Phoenix Contact 1022238 Wiring bridge TMC 7 B1 80 57 C
Normally In Stock
Code: 70878
Phoenix 1022238 Bridge 80 A (End feed) 600 VAC (1000 VDC) Protective Devices
Condition: New
Usually ships Same Day or Next Day$45.67
Sale Price
$38.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1022238 A bus bar for TMC 71 is available with single-phase circuit breakers featuring a 17.8 mm pitch, accommodating up to 57 positions. The unit is designed to handle an 80 A end feed current and can operate within 600 V AC or 1000 V DC power sources, while also being UL508 listed for connection of UL1077 rated circuit breakers.
Specifications
Breaker Voltage Rating
600 VAC
Breaker Amperage Rating
80 Amp
Component
Bridge
Manufacturer
Phoenix Contact
Breaker Jumper Positions
57 Positions
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 1022238 CAD data International.dwgPhoenix 1022238 CAD data International.igsPhoenix 1022238 CAD data International.stpPhoenix 1022238 CAD data International.wrlPhoenix 1022238 Flyer English.pdfPhoenix 1022238 Manufacturers declaration International.pdfPhoenix 1022238 Tender Text English.zipPhoenix 1022238 Various English.pdf
