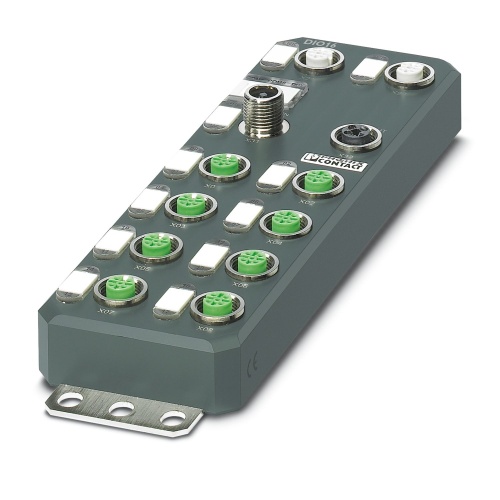

Phoenix Contact 2701494 Digital module AXL E EIP DIO16 M12 6P
Normally In Stock
Code: 70890
AXL E EIP DIO16 M12 6P Phoenix 2701494 I/O component Axioline Digital I/O,Digital Input,Digital Output EtherNet/IP 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$646.15
Sale Price
$538.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

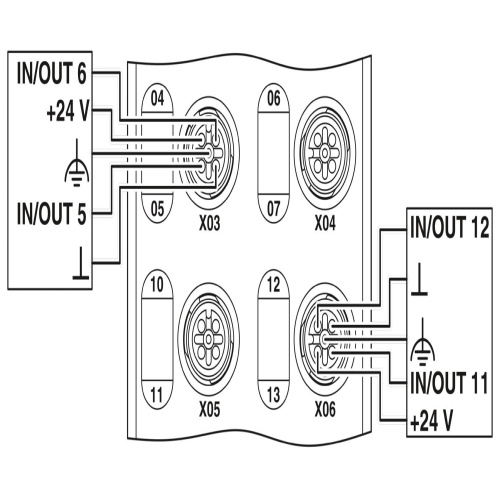

Phoenix Contact 2701494 The Axioline device is a digital I/O device that utilizes EtherNet/IP technology and features an M12 connector, allowing for 16 digital inputs with a 24V DC power supply via a 4-conductor connection, as well as 16 digital outputs also powered by 24V DC through a 3-conductor connection, housed in a plastic casing with IP65/IP67 protection.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Network Interface
EtherNet-IP
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 10 Mbps and 100 Mbps
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to EtherNet/IP™ network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701494 Application Note English-2.pdfPhoenix 2701494 Application Note English-3.pdfPhoenix 2701494 Application Note English.pdfPhoenix 2701494 CAD data International.dxfPhoenix 2701494 CAD data International.pdfPhoenix 2701494 CAD data International.stpPhoenix 2701494 Data Sheet English.pdfPhoenix 2701494 Device Description English.zipPhoenix 2701494 Manual English.pdfPhoenix 2701494 Manufacturers declaration English.pdfPhoenix 2701494 Manufacturers declaration International.pdfPhoenix 2701494 Package Slip International-2.pdfPhoenix 2701494 Package Slip International.pdfPhoenix 2701494 Software English.exePhoenix 2701494 Software English.zipPhoenix 2701494 Tender Text English.zipPhoenix 2701494 Various English.pdf
