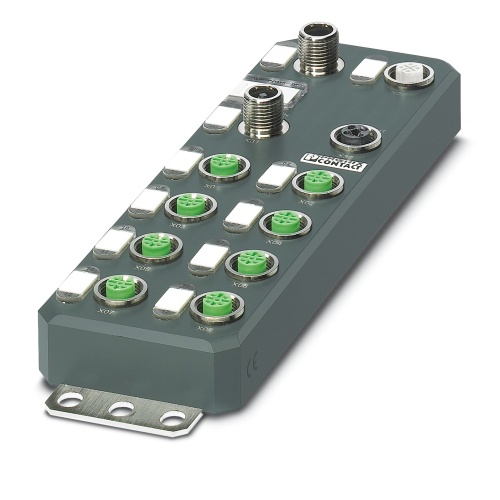

Phoenix Contact 2701498 Digital module AXL E PB DI16 M12 6P
Normally In Stock
Code: 70891
AXL E PB DI16 M12 6P Phoenix 2701498 I/O component Axioline Digital Input,Bus PROFIBUS DP 9.6 kbps ... 12 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$561.86
Sale Price
$468.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701498 The Axioline E is a digital input device that operates on the PROFIBUS DP protocol and uses an M12 connector for connectivity. It features 16 digital inputs, which operate at a voltage of 24V DC. The connection technology employed is a 4-conductor setup, and the device is housed in plastic with an IP65/IP67 degree of protection rating indicating its resistance to dust and water ingress.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Network Interface
PROFIBUS DP
PLC & IO Transmission Speed
9.6 kbps ... 12 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Baud rate of up to 12 Mbaud (automatic baud rate detection)

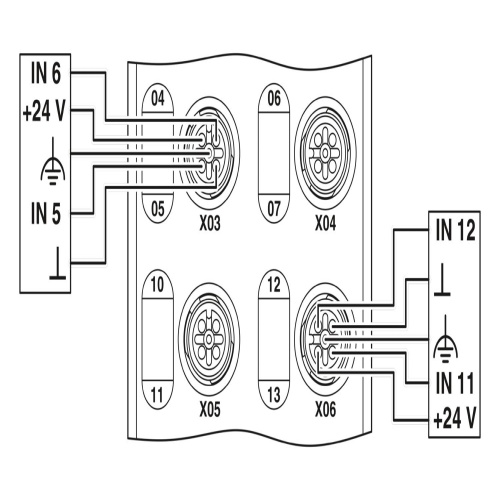

Connection of digital sensors using M12connectors (A-coded)
Connection to PROFIBUS DP using M12 connectors (B-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701498 Application Note English-2.pdfPhoenix 2701498 Application Note English.pdfPhoenix 2701498 CAD data International.dxfPhoenix 2701498 CAD data International.pdfPhoenix 2701498 CAD data International.stpPhoenix 2701498 Data Sheet English.pdfPhoenix 2701498 Device Description English.zipPhoenix 2701498 Manual English.pdfPhoenix 2701498 Manufacturers declaration English.pdfPhoenix 2701498 Manufacturers declaration International.pdfPhoenix 2701498 Package Slip International-2.pdfPhoenix 2701498 Package Slip International.pdfPhoenix 2701498 Tender Text English.zipPhoenix 2701498 Various English.pdf
