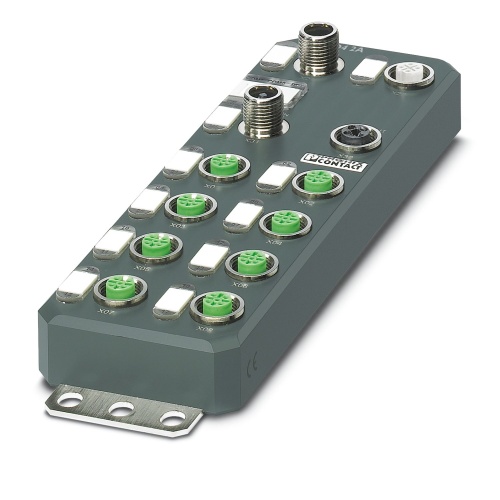

Phoenix Contact 2701502 Digital module AXL E PB DI8 DO4 2A M12 6P
Normally In Stock
Code: 70893
AXL E PB DI8 DO4 2A M12 6P Phoenix 2701502 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus PROFIBUS DP 9.6 kbps ... 12 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy,M12 connector, (A-coded) PLC & IO
Condition: New
Usually ships Same Day or Next Day$618.06
Sale Price
$515.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701502 The Axioline E is a digital I/O device that operates on the PROFIBUS DP protocol and features an M12 connector. It includes eight digital inputs requiring 24V DC power and four digital outputs also running at 24V DC. The connection technology for these devices is either 4-conductor for the inputs or 3-conductor for the outputs. The device has a plastic housing with a degree of protection offered by IP65/IP67, providing robust environmental resistance.
Specifications
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Network Interface
PROFIBUS DP
PLC & IO Transmission Speed
9.6 kbps ... 12 Mbps
PLC & IO Connection Method
A-coded
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Baud rate of up to 12 Mbaud (automatic baud rate detection)

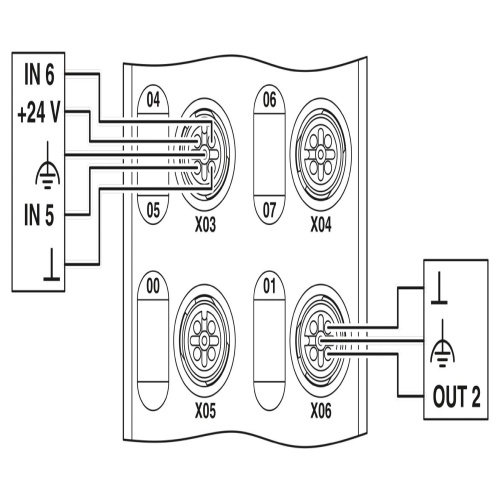

Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to PROFIBUS DP using M12 connectors (B-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701502 Application Note English-2.pdfPhoenix 2701502 Application Note English.pdfPhoenix 2701502 CAD data International.dxfPhoenix 2701502 CAD data International.pdfPhoenix 2701502 CAD data International.stpPhoenix 2701502 Data Sheet English.pdfPhoenix 2701502 Device Description English.zipPhoenix 2701502 Manual English.pdfPhoenix 2701502 Manufacturers declaration English.pdfPhoenix 2701502 Manufacturers declaration International.pdfPhoenix 2701502 Package Slip International-2.pdfPhoenix 2701502 Package Slip International.pdfPhoenix 2701502 Tender Text English.zipPhoenix 2701502 Various English.pdf
