Phoenix Contact 2701490 Distributed I/O device AXL E EIP DI8 DO4 2A M12 6M
Normally In Stock
Code: 70897
Phoenix 2701490 Distributed I/O device AXL E EIP DI8 DO4 2A M12 6M
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$750.01
Sale Price
$625.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

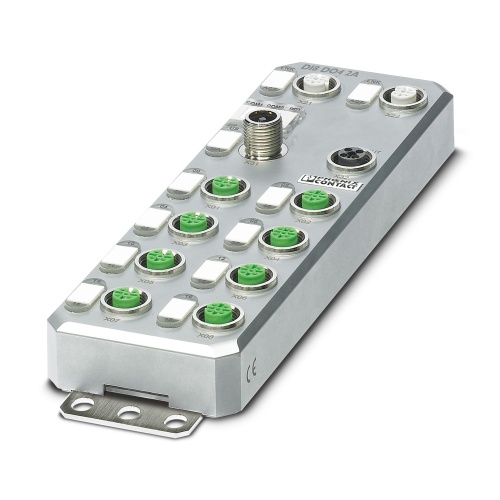

Phoenix Contact 2701490 Axioline E is a digital I/O device that features an EtherNet/IP connectivity method using an M12 connector, with 8 digital inputs and 4 digital outputs both powered by 24V DC. The connection technologies for the digital inputs and outputs are 4-conductor and 3-conductor respectively. This device has a metal housing providing protection up to IP65/IP67 standards.
Specifications
PLC & IO Transmission Speed
10/100 Mbps
PLC & IO Degree of Protection
IP65/IP67
PLC & IO Connection Method
M12 connector
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline E
Component
Distributed I/O device
Features
Connection to EtherNet/IP™ network using M12 connectors (D-coded)
Transmission speed of 10 Mbps and 100 Mbps

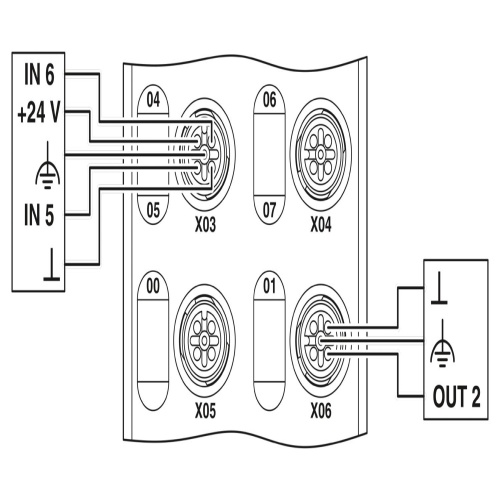

Connection of digital sensors and actuators using M12connectors (A-coded)
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701490 Application Note English-2.pdfPhoenix 2701490 Application Note English-3.pdfPhoenix 2701490 Application Note English.pdfPhoenix 2701490 CAD data International.dxfPhoenix 2701490 CAD data International.pdfPhoenix 2701490 CAD data International.stpPhoenix 2701490 Data Sheet English.pdfPhoenix 2701490 Device Description English.zipPhoenix 2701490 Manual English.pdfPhoenix 2701490 Manufacturers declaration English.pdfPhoenix 2701490 Manufacturers declaration International.pdfPhoenix 2701490 Package Slip International-2.pdfPhoenix 2701490 Package Slip International.pdfPhoenix 2701490 Software English.exePhoenix 2701490 Software English.zipPhoenix 2701490 Tender Text English.zipPhoenix 2701490 Various English.pdf
