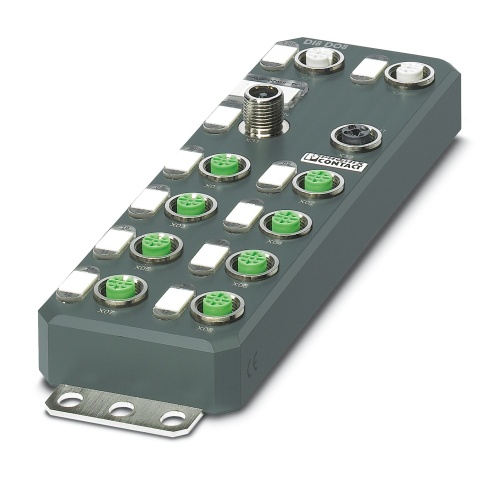

Phoenix Contact 2701520 Digital module AXL E EC DI8 DO8 M12 6P
Normally In Stock
Code: 70910
AXL E EC DI8 DO8 M12 6P Phoenix 2701520 I/O component Axioline Digital I/O,Digital Input,Digital Output EtherCAT 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

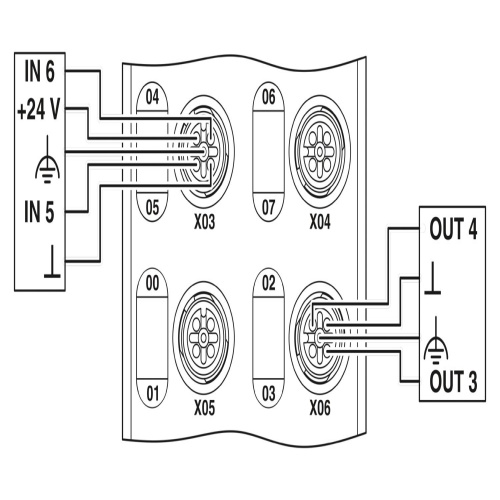

Phoenix Contact 2701520 The Axioline E is a digital I/O device that features an M12 connector and EtherCAT connectivity, with eight digital inputs and eight digital outputs both operating at 24V DC power. The device has a 4-conductor connection technology for the inputs and a 3-conductor connection technology for the outputs, and it is housed in a plastic casing providing protection against IP65/IP67 environmental conditions.
Specifications
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Transmission Speed
100 Mbps
PLC & IO Network Interface
EtherCAT
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 100 Mbps
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to EtherCAT® network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701520 Application Note English-2.pdfPhoenix 2701520 Application Note English-3.pdfPhoenix 2701520 Application Note English.pdfPhoenix 2701520 CAD data International.dxfPhoenix 2701520 CAD data International.pdfPhoenix 2701520 CAD data International.stpPhoenix 2701520 Data Sheet English.pdfPhoenix 2701520 Device Description English.zipPhoenix 2701520 Firmware English.zipPhoenix 2701520 Manual English.pdfPhoenix 2701520 Manufacturers declaration English.pdfPhoenix 2701520 Manufacturers declaration International.pdfPhoenix 2701520 Package Slip International-2.pdfPhoenix 2701520 Package Slip International.pdfPhoenix 2701520 Quick Start Guide English-2.pdfPhoenix 2701520 Quick Start Guide English.pdfPhoenix 2701520 Tender Text English.zipPhoenix 2701520 Various English.pdf
