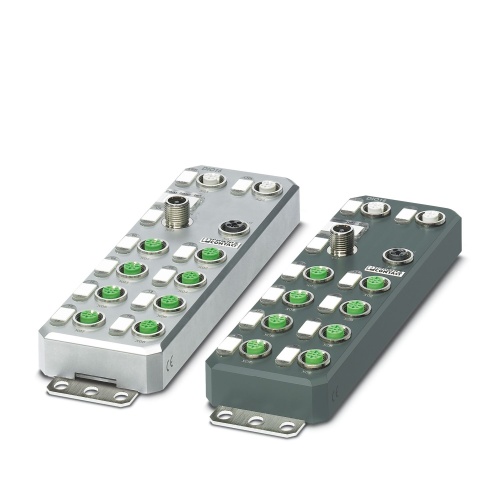

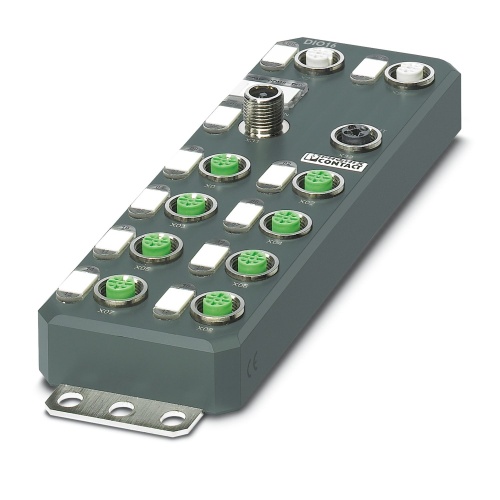

Phoenix Contact 2701545 Digital module AXL E S3 DIO16 M12 6P
Normally In Stock
Code: 70955
AXL E S3 DIO16 M12 6P Phoenix 2701545 I/O component Axioline Digital I/O,Digital Input,Digital Output Sercos 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$646.15
Sale Price
$538.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701545 The Axioline E is a digital I/O device that features Sercos communication and uses an M12 connector. It has 16 digital inputs and 16 digital outputs, both powered by 24V DC power supply with respective connection technologies of 4-conductor and 3-conductor. The device is housed in a plastic casing providing IP65/IP67 degree of protection.
Specifications
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Transmission Speed
100 Mbps
PLC & IO Network Interface
Sercos
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 100 Mbps with a minimum cycle time of 250 µs

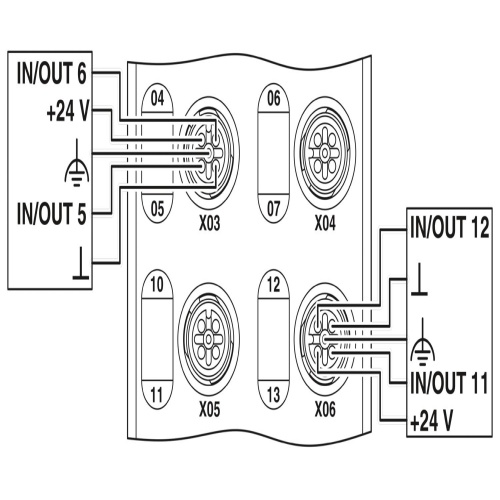

Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to Sercos network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
