Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

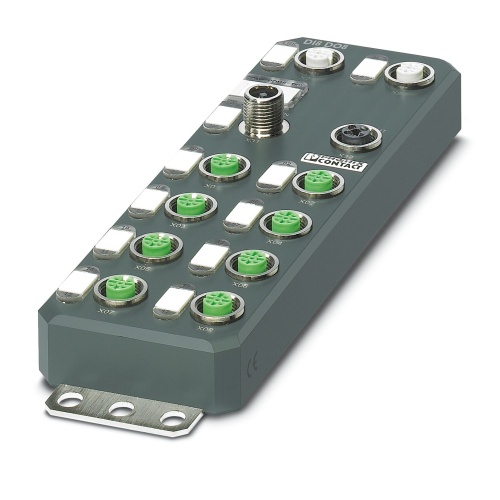

Phoenix Contact 2701532 Digital module AXL E ETH DI8 DO8 M12 6P
Normally In Stock
Code: 70960
AXL E ETH DI8 DO8 M12 6P Phoenix 2701532 I/O component Axioline Digital I/O,Digital Input,Digital Output Ethernet 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701532 Axioline E is a digital I/O device featuring an M12 connector, with eight digital inputs and eight digital outputs that operate at 24V DC. The device utilizes four-conductor connections for inputs and three-conducer connections for outputs. Its housing is made of plastic, providing protection to IP65/IP67 levels, allowing it to withstand harsh environments.
Specifications
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Network Interface
Ethernet
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 10 Mbps and 100 Mbps
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to Ethernet network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701532 Application Note English-2.pdfPhoenix 2701532 Application Note English-3.pdfPhoenix 2701532 Application Note English-4.pdfPhoenix 2701532 Application Note English.pdfPhoenix 2701532 CAD data International.dxfPhoenix 2701532 CAD data International.pdfPhoenix 2701532 CAD data International.stpPhoenix 2701532 Data Sheet English.pdfPhoenix 2701532 Manual English.pdfPhoenix 2701532 Manufacturers declaration English.pdfPhoenix 2701532 Manufacturers declaration International.pdfPhoenix 2701532 Package Slip International-2.pdfPhoenix 2701532 Package Slip International.pdfPhoenix 2701532 Software English.exePhoenix 2701532 Software English.zipPhoenix 2701532 Tender Text English.zipPhoenix 2701532 Various English.pdf
Code: 70960
Phoenix Contact 2701532 Digital module AXL E ETH DI8 DO8 M12 6P
$603.35
Sale Price
$502.79
