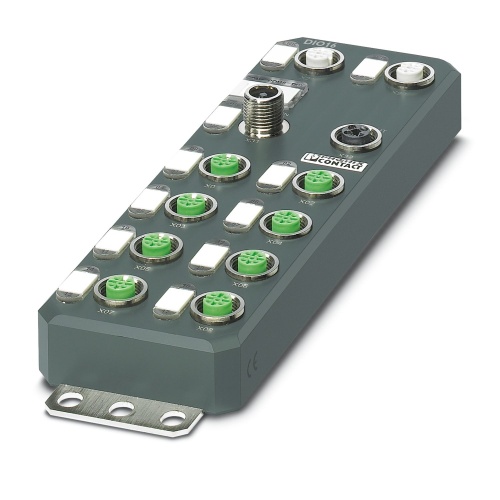

Phoenix Contact 2701534 Digital module AXL E ETH DIO16 M12 6P
Normally In Stock
Code: 71016
AXL E ETH DIO16 M12 6P Phoenix 2701534 I/O component Axioline Digital I/O,Digital Input,Digital Output Ethernet 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$693.41
Sale Price
$577.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701534 The Axioline E is a digital I/O device that features a M12 connector and comes with Ethernet connectivity. It has 16 digital inputs and 16 digital outputs, both operating at 24 V DC power supply. The connection technologies for the digital inputs and outputs are 4-conductor and 3-conductor respectively. This device is housed in a plastic casing that provides an IP65/IP67 degree of protection against environmental elements.
Specifications
PLC & IO Connection Method
M12 Fast Connection Technology
PLC & IO Connection Method
M12 Connector (T-Coded)
PLC & IO Connection Method
M12 Connector
PLC & IO Connection Method
Double Occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Network Interface
Ethernet
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 10 Mbps and 100 Mbps
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to Ethernet network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701534 Application Note English-2.pdfPhoenix 2701534 Application Note English-3.pdfPhoenix 2701534 Application Note English-4.pdfPhoenix 2701534 Application Note English.pdfPhoenix 2701534 CAD data International.dxfPhoenix 2701534 CAD data International.pdfPhoenix 2701534 CAD data International.stpPhoenix 2701534 Data Sheet English.pdfPhoenix 2701534 Manual English.pdfPhoenix 2701534 Manufacturers declaration English.pdfPhoenix 2701534 Manufacturers declaration International.pdfPhoenix 2701534 Package Slip International-2.pdfPhoenix 2701534 Package Slip International.pdfPhoenix 2701534 Software English.exePhoenix 2701534 Software English.zipPhoenix 2701534 Tender Text English.zipPhoenix 2701534 Various English.pdf
