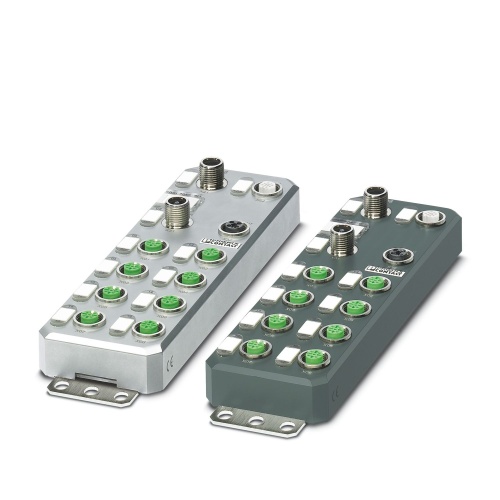

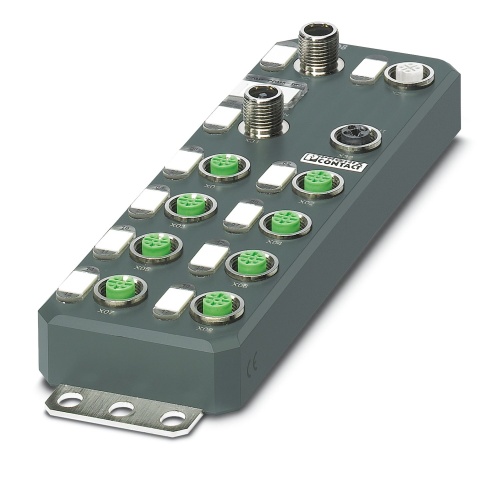

Phoenix Contact 2701497 Digital module AXL E PB DI8 DO8 M12 6P
Normally In Stock
Code: 71023
AXL E PB DI8 DO8 M12 6P Phoenix 2701497 I/O component Axioline Digital I/O,Digital Input,Digital Output,Bus PROFIBUS DP 9.6 kbps ... 12 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$603.35
Sale Price
$502.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701497 The Axioline E is a digital I/O device compatible with PROFIBUS DP, featuring an M12 connector and available in two configurations: one with 8 digital inputs that operate at 24V DC and another with 8 digital outputs also operating at 24V DC, both utilizing 4-conductor and 3-conductor connection technologies respectively, housed in a plastic casing with a high degree of protection against dust (IP65) and water immersion (IP67).
Specifications
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Network Interface
PROFIBUS DP
PLC & IO Transmission Speed
9.6 kbps ... 12 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Baud rate of up to 12 Mbaud (automatic baud rate detection)
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to PROFIBUS DP using M12 connectors (B-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701497 Application Note English-2.pdfPhoenix 2701497 Application Note English.pdfPhoenix 2701497 CAD data International.dxfPhoenix 2701497 CAD data International.pdfPhoenix 2701497 CAD data International.stpPhoenix 2701497 Data Sheet English.pdfPhoenix 2701497 Device Description English.zipPhoenix 2701497 Manual English.pdfPhoenix 2701497 Manufacturers declaration English.pdfPhoenix 2701497 Manufacturers declaration International.pdfPhoenix 2701497 Package Slip International-2.pdfPhoenix 2701497 Package Slip International.pdfPhoenix 2701497 Tender Text English.zipPhoenix 2701497 Various English.pdf
