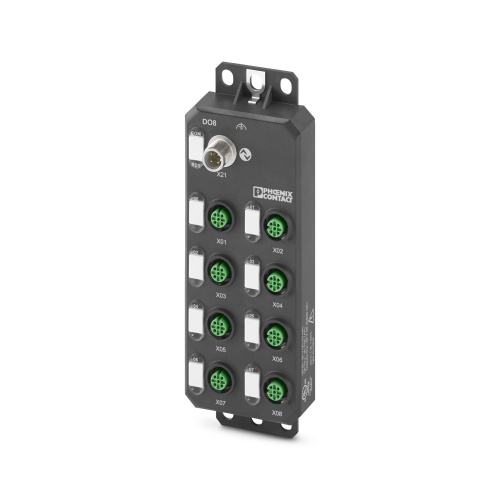

Phoenix Contact 2702659 Digital module AXL E IOL DO8 M12 6P
Normally In Stock
Code: 71150
AXL E IOL DO8 M12 6P Phoenix 2702659 I/O component Axioline Digital Output Actuators (UA) M12 connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$198.00
Sale Price
$165.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702659 The axioline E is a digital output device that features IO-Link ports and class B specifications. It has an M12 connector with A-coded connections utilizing 5-conductor technology for its digital outputs, which include 8 channels and can supply up to 500 mA at 24 V DC. The device also employs 3-conductor connection technology and is housed in a plastic casing providing IP65/IP67 level of protection against environmental elements.
Specifications
PLC & IO Connection Method
M12 connector
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
8
Manufacturer
Phoenix Contact
Component
I/O Component
Features

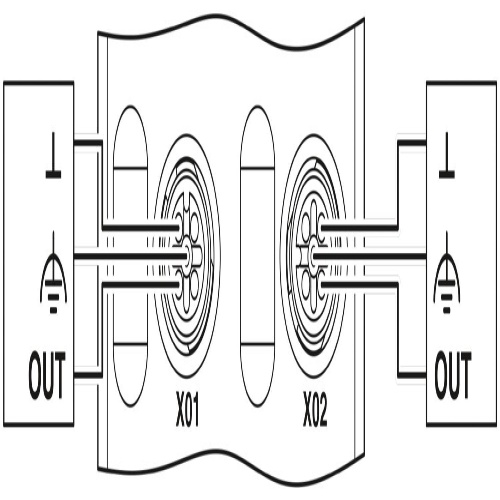

Connection up to 8 outputs with M12 connectors (A-coded, 5-pos.)
Type B port with additional power supply
IO-Link specification V1.1.2
Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Diagnostic and status indicators
Short-circuit and overload protection of the sensor supply
Device rating plate stored
IP65/IP67 degree of protection
Downloads
Phoenix 2702659 Application Note English.pdfPhoenix 2702659 CAD data International.dxfPhoenix 2702659 CAD data International.pdfPhoenix 2702659 CAD data International.stpPhoenix 2702659 Data Sheet English.pdfPhoenix 2702659 Device Description English.zipPhoenix 2702659 Manual English.pdfPhoenix 2702659 Manufacturers declaration English.pdfPhoenix 2702659 Manufacturers declaration International.pdfPhoenix 2702659 Package Slip International.pdfPhoenix 2702659 Product Information English.pdfPhoenix 2702659 Tender Text English.zipPhoenix 2702659 Various English.pdf
